1
Engine displacement
250
2
Model
MP3
3
Year
2008
4
Trim
MP3 ie LT
5
Parts Catalog
Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Front shield
by
Silencer
Wheel huosing - Mudguard
1
2
3
4
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
33
34
35
36
37
38
1
Right front mudguard
650971
Not Available
1
Right front mudguard
665506
Not Available
1
Right front mudguard
666414
$78,24 Unit Price incl. VAT
2
TUBO PER PARAFANGO SX CON P.I.
651228
$79,16 Unit Price incl. VAT
2
TUBO PER PARAFANGO SX CON P.I.
649257
$89,76 Unit Price incl. VAT
3
TUBO PER PARAFANGO DX CON P.I.
649284
$197,20 Unit Price incl. VAT
3
TUBO PER PARAFANGO DX CON P.I.
665508
$79,16 Unit Price incl. VAT
4
Splash guard for mudguard
647987
Not Available
4
BATTOLA PER PARAFANGO
665963
$38,43 Unit Price incl. VAT
5
VITE
564606
$0,28 Unit Price incl. VAT
6
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
7
Left front mudguard
666221
Not Available
7
Left front mudguard
651311
Not Available
7
Left front mudguard
650970
Not Available
8
Hex socket screw
650902
$3,65 Unit Price incl. VAT
9
RONDELLA PIANA
827526
$0,25 Unit Price incl. VAT
11
VITE
564606
$0,28 Unit Price incl. VAT
12
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
13
VANO RUOTA
623255
$76,85 Unit Price incl. VAT
14
Self-tap screw
576189
$0,05 Unit Price incl. VAT
14
VITE AUTOFILET.CON IMPRONTA TORX
CM178601
$0,16 Unit Price incl. VAT
15
VITE
259577
$0,17 Unit Price incl. VAT
16
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
17
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
18
Wheel housing central closing
623067
Not Available
19
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
20
Self-tap screw
576189
$0,05 Unit Price incl. VAT
20
VITE AUTOFILET.CON IMPRONTA TORX
CM178601
$0,16 Unit Price incl. VAT
21
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
22
Wheel housing central part
623548
Not Available
23
VITE METRICA(IMPRONTA TORX)
CM179201
$0,34 Unit Price incl. VAT
23
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
24
PARAFANGO POSTERIORE
655431
$15,22 Unit Price incl. VAT
25
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
26
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
27
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
28
RONDELLA PIANA
827526
$0,25 Unit Price incl. VAT
29
VITE TESTA BOMBATA ESAG. INCASSATO
651014
$0,17 Unit Price incl. VAT
30
Hex socket screw
650902
$3,65 Unit Price incl. VAT
31
RONDELLA PIANA
827526
$0,25 Unit Price incl. VAT
33
SQUADRETTA ANTERIORE
651192
$5,38 Unit Price incl. VAT
34
SQUADRETTA POSTERIORE
651271
$11,69 Unit Price incl. VAT
35
VITE AUTOFILETTANTE
296141
$0,08 Unit Price incl. VAT
36
SQUADRETTA ANTERIORE
651192
$5,38 Unit Price incl. VAT
37
SQUADRETTA POSTERIORE
651271
$11,69 Unit Price incl. VAT
38
VITE AUTOFILETTANTE
296141
$0,08 Unit Price incl. VAT

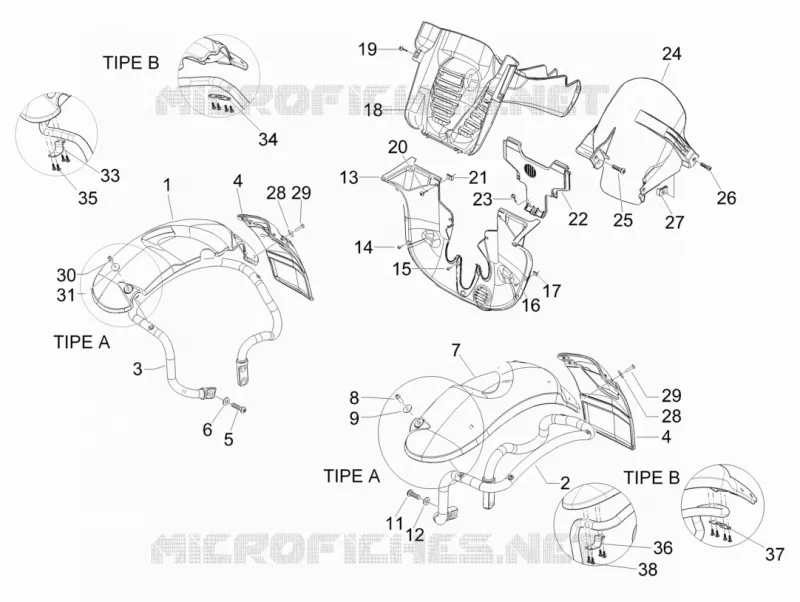

Find the detailed Wheel huosing - Mudguard GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
