Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

Front shield

FUEL TANK FOR VESPA SPRINT 4T 3V IE 2016

Helmet huosing - Undersaddle

Item numbers

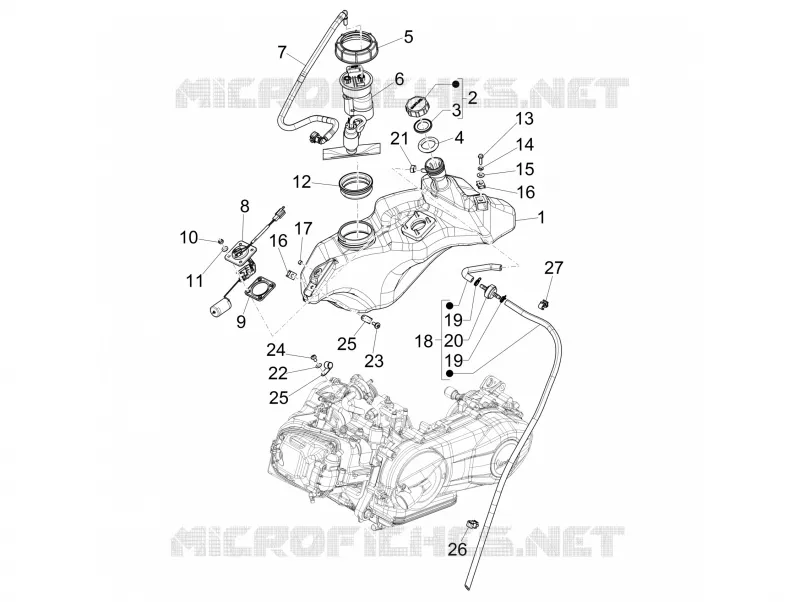

Fuel tank VESPA VESPA-SCOOTER 125 SPRINT 2016 Sprint 4T 3V ie
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
19
19
20
21
22
23
24
25
25
26
27
1
FUEL TANK

5A000163  

Contact
2
PLUG

259832  

Unit Price

3
TANK COVER GASKET

656021  

Unit Price

4
FUEL TANK GASKET

620737  

Unit Price

5
RING NUT

576546  

Unit Price

6
COMPLETE FUEL PUMP ASSEMBLY

643034  

Unit Price

7
FUEL PIPE COMPLETE WITH JOINTS

1B001000R  

Unit Price

8
INDICATOR FUEL LEVEL

680057  

Unit Price

9
GASKET
GASKET

673916  

676200

Unit Price

10
NUT

709116  

Unit Price

11
FLAT WASHER 16X6, 5X1, 5

013880  

Unit Price

12
GASKET
GASKET

576542  

656003

Unit Price

13
HEX SCREW M6X20

018639  

Unit Price

14
SPRING WASHER 6, 4X11, 8X1

016406  

Unit Price

15
FLAT WASHER 16X6, 5X1, 5

013880  

Unit Price

16
SPRING PLATE M6

254485  

Unit Price

17
SPACER

1B000285  

Unit Price

18
COMPLETE BREATHER PIPE

1B000694  

Unit Price

18
COMPLETE BREATHER PIPE

5A000220  

Contact
19
HOSE CLAMP

CM002908  

Unit Price

20
SAFETY VALVE
SAFETY VALVE

CM179001  

576748

Unit Price

21
HOSE CLAMP

CM001914  

Unit Price

22
WASHER

012528  

Unit Price

23
SCREW M5X15

873653  

Unit Price

24
SCREW M6X16

CM179301  

Unit Price

25
HOSE CLAMP

573918  

Unit Price

26
SPRING

CM013201  

Unit Price

27
SHEET EDGE SPRING

CM013203  

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from VESPA. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the Fuel tank of your VESPA Sprint 4T 3V ie of SPRINT. Let us know if you have any questions.

Genuine parts for VESPA Sprint 4T 3V ie 2016

Engine Frame - Plastic parts - Coachwork Handlebars/Steering Suspensions - Wheels Braking system - Transmissions Electrical system

VESPA Sprint 4T 3V ie 2016

Choose the exact model of your VESPA SPRINT 125 to access the different categories of genuine spare parts

125 SPRINT 2016 Sprint 4T 3V ie

Sprint 4T 3V ie

VESPA-SCOOTER SPRINT

Displacement: 125 cc
Year: 2016
