Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

Flywheel magneto cover - Oil filter

HEAD UNIT - VALVE FOR GILERA NEXUS IE E3 2009

Cooler pump

Item numbers

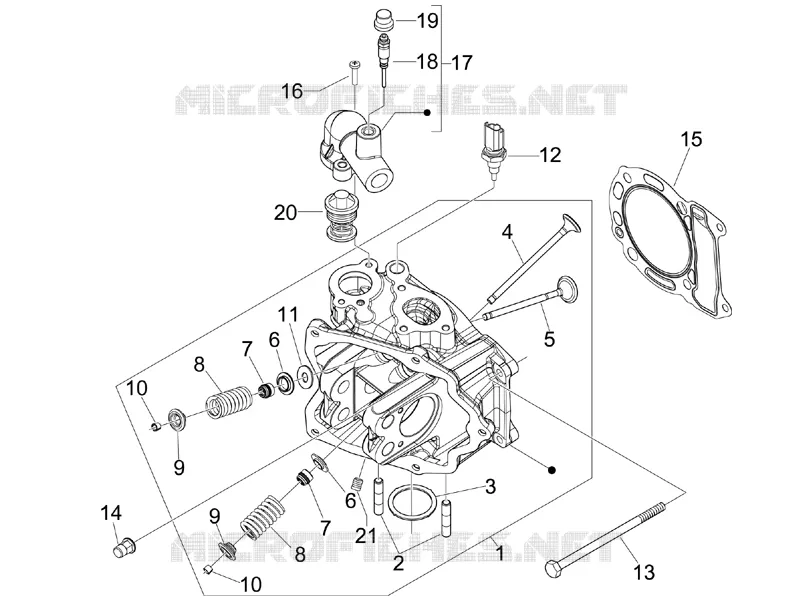

Head unit - Valve GILERA GILERA-SCOOTER 125 NEXUS 2009 Nexus ie E3
1
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
11
12
13
14
15
16
17
18
19
20
21
1
CYLINDER HEAD
CYLINDER HEAD

875163  

8778016

Unit Price

2
STUD BOLT M7

435629  

Unit Price

3
EXHAUST PIPE GASKET

480853  

Unit Price

4
SOUPAPE ÉCHAPPEMENT
EXHAUST VALVE

873114  

873839

Unit Price

5
VALVE, IN
INTAKE VALVE

872999  

873809

Unit Price

6
LOWER CAP

483711  

Unit Price

7
VALVE GASKET RING

436438  

Unit Price

8
VALVE SPRING

875140  

Unit Price

9
UPPER CAP

483914  

Unit Price

10
VALVE HALF-CONE

285846  

Unit Price

11
SPACER WASHER 0, 4 MM

CM159801  

Unit Price

11
SPACER WASHER 0, 8 MM

CM159802  

Unit Price

11
SPACER WASHER 1, 2 MM

CM159803  

Unit Price

12
BULBE DE TEMPÉRATURE D’EAU
WATER TEMPERATURE SENSOR

640485  

1A021287R

Unit Price

13
SCREW W/ FLANGE

485603  

Unit Price

14
NUT M8X1, 25

411296  

Unit Price

15
CYLINDER HEAD GASKET 0, 3 MM

876625  

Unit Price

16
HEX SOCKET SCREW M5X20

845753  

Contact
17
WATER OUTLET UNION

875106  

Unit Price

18
BLEED SCREW

430045  

Unit Price

19
BLEED VALVE CAP

063435  

Unit Price

20
WATER THERMOSTAT

82951R  

Unit Price

21
PLUG M6X10

842360  

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from GILERA. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of GILERA, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for GILERA Nexus ie E3 2009
