Fuel tank for Zip from 1996

Fuel tank

1

Tank

623008

$241,31 Unit Price incl. VAT

2

Indicator fuel level

CM025706

$110,21 Unit Price incl. VAT

3

Plug

259832

$1,10 Unit Price incl. VAT

4

Tank cover gasket

258160

$1,00 Unit Price incl. VAT

5

Depression tap

575321

Not Available

6

Gasket

196868

$3,70 Unit Price incl. VAT

7

Hose clamp

577557

Not Available

8

pipe 4x9x350

CM006103

Not Available

9

Depression pipe

CM027904

Not Available

9

Complete vacuum pipe

624933

$17,83 Unit Price incl. VAT

10

Hose clamp

CM001912

$3,65 Unit Price incl. VAT

11

screw M6x25

031092

$1,56 Unit Price incl. VAT

12

Flat washer 6,5x21

268304

$0,42 Unit Price incl. VAT

13

Spacer

231027

$1,22 Unit Price incl. VAT

14

Hose clamp

CM002901

$0,09 Unit Price incl. VAT

15

Hose clamp

CM002904

$0,42 Unit Price incl. VAT

16

Sheet edge spring

CM013203

$0,67 Unit Price incl. VAT

17

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

18

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

19

Cover

090958

$5,38 Unit Price incl. VAT

20

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

21

Tank cover

623132

Not Available

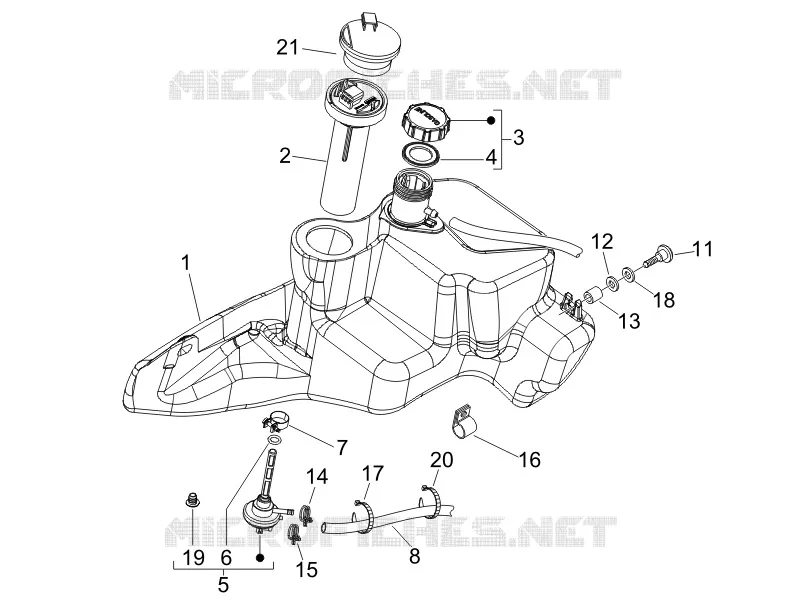

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
