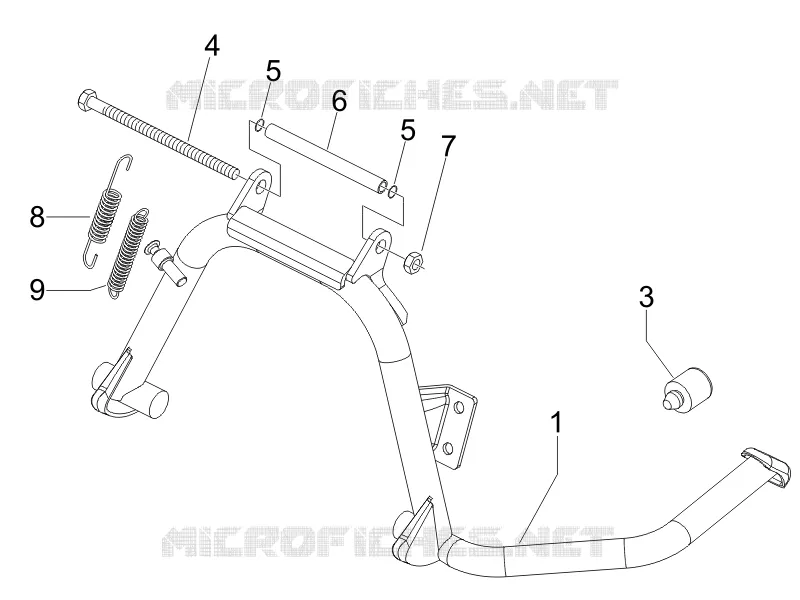

Stand/s
1
3
4
5
5
6
7
8
9
1
Central stand
646981
Not Available
3
Pad
272426
Not Available
4
Hex screw M10x130
030115
$1,85 Unit Price incl. VAT
5
O-ring
273754
$0,16 Unit Price incl. VAT
6
Spacer
582298
$3,27 Unit Price incl. VAT
7
Self locking nut M10
232108
Not Available
7
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
8
Spring
581249
$2,44 Unit Price incl. VAT
9
Spring
581248
$2,01 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
