Cooling system for GILERA PIAGGIO VESPA MP3 ie from 2009

Fork/steering tube - Steering bearing unit

Front headlamps - Turn signal lamps

Cooling system

1

Water cooler

653468

Not Available

2

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

3

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

4

TAMPONE

258904

$0,25 Unit Price incl. VAT

5

MOLLETTA RITEGNO TUBI

CM017808

$4,82 Unit Price incl. VAT

6

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

7

GR. ELETTROVENTOLA COMPL.

58211R

$69,69 Unit Price incl. VAT

8

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

8

VITE METRICA IMP. TORX(H=16)

CM179301

$0,25 Unit Price incl. VAT

9

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

10

Radiator big end connection pipe

622584

$34,73 Unit Price incl. VAT

11

TUBO COLL.TO POMPA-RADIATORE

655491

$36,85 Unit Price incl. VAT

12

FASCETTA STRINGITUBO (D.30,1 S.0,6 L.7)

CM001922

$3,65 Unit Price incl. VAT

13

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

14

FASCETTA STRINGITUBO

CM001907

$0,84 Unit Price incl. VAT

15

TUBO SFIATO RADIATORE

622581

$8,16 Unit Price incl. VAT

16

TUBO RADIATORE-VASO ESPANSIONE

622582

$7,23 Unit Price incl. VAT

17

FASCETTA STRINGITUBO

CM001903

$0,84 Unit Price incl. VAT

18

FASCETTA STRINGITUBO

CM001904

$0,75 Unit Price incl. VAT

19

Coolant tank

653463

Not Available

20

TAPPO SERB.LIQUIDO RAF

623673

$15,97 Unit Price incl. VAT

21

VITE

258249

$0,09 Unit Price incl. VAT

22

PIASTRINA ELASTICA

CM017410

$0,34 Unit Price incl. VAT

23

TAMPONE

258904

$0,25 Unit Price incl. VAT

24

MOLLETTA RITEGNO TUBI

CM006902

$0,92 Unit Price incl. VAT

25

MOLLETTA RITEGNO TUBI

CM006903

$1,43 Unit Price incl. VAT

26

FASCETTA STRINGITUBO (D.28,6 S.0,6 L.7)

CM001915

$1,03 Unit Price incl. VAT

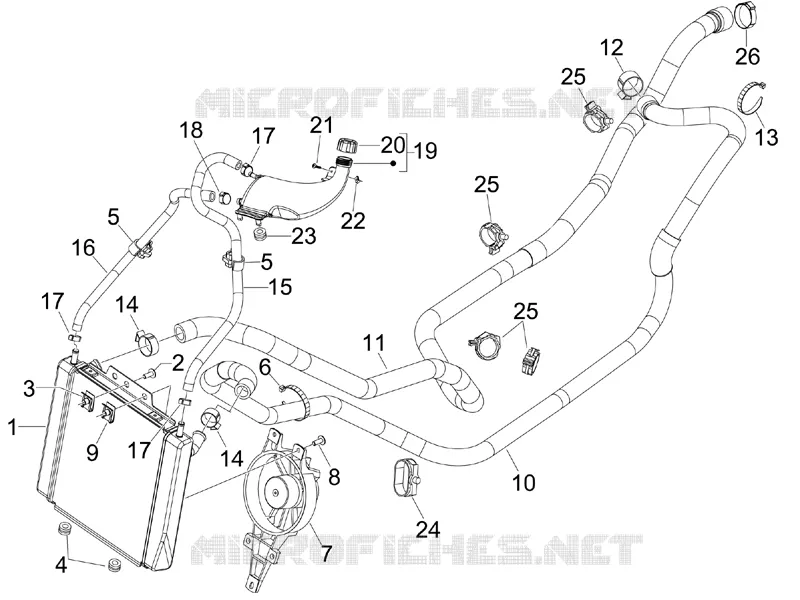

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for MP3 ie

Cylinder head cover

Fork/steering tube - Steering bearing unit

Cooling system

Front headlamps - Turn signal lamps

Rocking levers support unit

Flywheel magneto

Stater - Electric starter

Cooler pump

Helmet huosing - Undersaddle

Transmissions

Handlebars coverages

Saddle/seats

Meter combination - Cruscotto

Cylinder-piston-wrist pin unit

Front wheel

Brakes pipes - Calipers

Crankshaft

Driving mirror/s

Oil pump

Crankcase cover - Crankcase cooling

Windshield - Glass

Main cable harness

Rear suspension - Shock absorber/s

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

Locks

Front shield

Rear headlamps - Turn signal lamps

Handlebars - Master cil.

Front glove-box - Knee-guard panel

Frame/bodywork

Selectors - Switches - Buttons

Rear cover - Splash guard

Plates - Emblems

Side cover - Spoiler

Fuel tank

Head unit - Valve

Remote control switches - Battery - Horn

Crankcase

Swinging arm

Reduction unit

Wheel huosing - Mudguard

Air filter

Driving pulley

Rear wheel

Fork's components (Mingxing)

Driven pulley

Throttle body - Injector - Union pipe

Flywheel magneto cover - Oil filter

Central cover - Footrests

Stand/s

Silencer

Engine, assembly

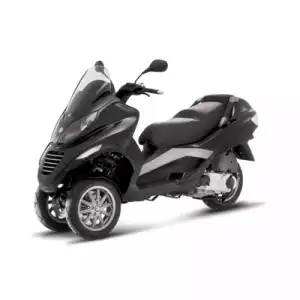

GILERA PIAGGIO VESPA MP3 ie 2009
