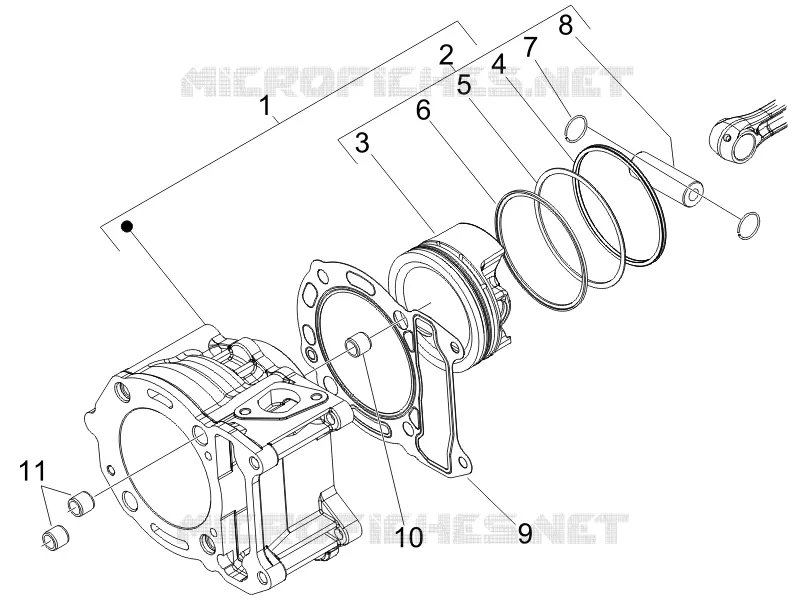

Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
10
11
1
Cylinder - piston - pin - parts- rings assembly
840566
Not Available
2
Piston-wrist pin assy.
8284665002
Not Available
2
Piston-wrist pin assy.
8284665004
Not Available
2
Piston-wrist pin assy.
828464
Not Available
2
Piston-wrist pin assy.
8284665003
Not Available
2
Piston-wrist pin assy.
828465
Not Available
2
Piston-wrist pin assy.
8284665001
Not Available
2
Piston-wrist pin assy.
828463
Not Available
3
PISTON
828311
Not Available
3
PISTON
828312
Not Available
3
PISTON
828313
Not Available
3
Piston
828310
Not Available
4
Gasket ring
487994
Not Available
4
Gasket ring
487998
Not Available
4
Gasket ring
488002
Not Available
4
Compression ring d.57x1
485779
$23,03 Unit Price incl. VAT
5
Scraper ring
487999
Not Available
5
Oil scraper ring d.57x2,5
485914
$21,88 Unit Price incl. VAT
5
Scraper ring
487995
Not Available
5
Scraper ring
488003
$7,61 Unit Price incl. VAT
6
Oil scraper ring d.57x1
486362
$26,68 Unit Price incl. VAT
6
Oil scraper ring
488004
Not Available
6
Oil scraper ring
825029
$14,34 Unit Price incl. VAT
6
Oil scraper ring
487996
$14,34 Unit Price incl. VAT
7
Snap ring
963486
$0,05 Unit Price incl. VAT
8
Piston pin
482335
$4,92 Unit Price incl. VAT
9
Cylinder base gasket 0,8 mm
828148
Not Available
9
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
9
Cylinder base gasket 0,4 mm
828146
Not Available
10
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
11
Locating dowel Ø11x10
478115
$0,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
