1
Engine displacement
125
2
Model
MP3
3
Year
2007
4
Trim
MP3
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6

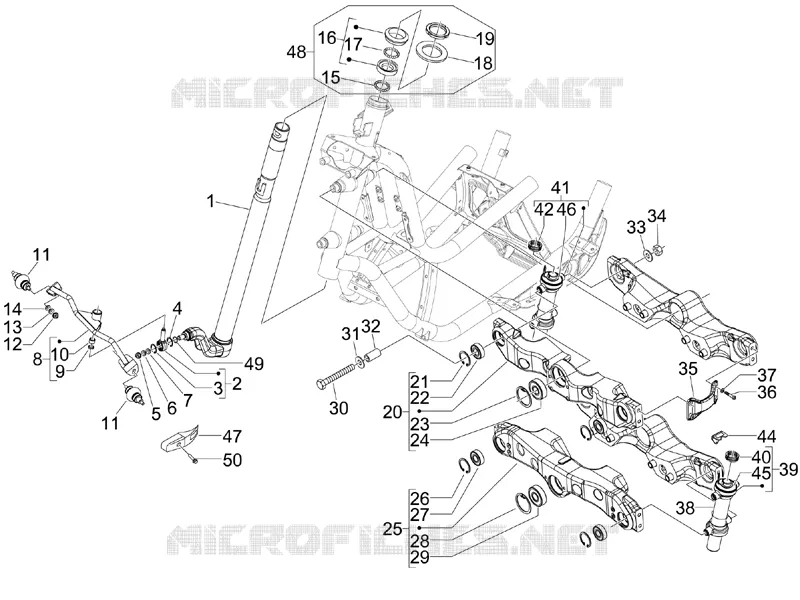

Parts Diagram
Parts Catalog
Oil pump
by
Carburetor's components
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
44
45
46
47
48
49
50
1
Control tube with U.P.
622741
Not Available
1
Steering tube assembly with U.P.
56417R
Not Available
2
Steering tube control axis
622751
$35,81 Unit Price incl. VAT
3
Snap ring
006628
$0,34 Unit Price incl. VAT
4
Safety washer
006408
$0,09 Unit Price incl. VAT
5
Nut M8x1,25
967363
$0,51 Unit Price incl. VAT
6
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
6
Spring washer
709047
$0,08 Unit Price incl. VAT
7
Washer
006032
$0,56 Unit Price incl. VAT
7
Plain washer 8,2x20x2,5
013861
$0,25 Unit Price incl. VAT
8
Complete steering control tie rod.
622744
$70,77 Unit Price incl. VAT
9
Gasket ring
167018
$6,35 Unit Price incl. VAT
10
Roller cage
167016
$5,67 Unit Price incl. VAT
11
Complete cardan joint
648562
Not Available
11
UNIVERSAL JOINT
647914
Not Available
12
Nut M8x1,25
967363
$0,51 Unit Price incl. VAT
13
Washer 16.2x25x0.5
647494
$3,65 Unit Price incl. VAT
14
Plain washer 8,2x20x2,5
013861
$0,25 Unit Price incl. VAT
15
Upper thrust ring
564745
Not Available
16
Upper thrust ring
CM061303
$65,02 Unit Price incl. VAT
17
Missing description
000000
Not Available
18
Washer of the steering
003751
$3,65 Unit Price incl. VAT
19
Steering tube ring nut
011109
Not Available
20
Lower complete rear suspension arm
646556
$178,60 Unit Price incl. VAT
21
Snap ring
006635
$0,25 Unit Price incl. VAT
22
Ball bearing
601345
$12,69 Unit Price incl. VAT
23
Circlip
006647
$1,10 Unit Price incl. VAT
24
Ball bearing
601467
$18,36 Unit Price incl. VAT
25
Upper complete rear suspension arm
646561
$166,91 Unit Price incl. VAT
26
Snap ring
006635
$0,25 Unit Price incl. VAT
27
Ball bearing
601345
$12,69 Unit Price incl. VAT
28
Circlip
006647
$1,10 Unit Price incl. VAT
29
Ball bearing
601467
$18,36 Unit Price incl. VAT
30
screw
030113
$3,65 Unit Price incl. VAT
31
Flat washer
178790
$0,51 Unit Price incl. VAT
32
Bushing
621288
$6,30 Unit Price incl. VAT
33
Washer
709646
Not Available
34
Self locking nut M10
231370
$0,38 Unit Price incl. VAT
34
Nut
564878
$2,99 Unit Price incl. VAT
35
Suspension arm connection bracket
646543
$35,51 Unit Price incl. VAT
36
screw
975855
$3,65 Unit Price incl. VAT
36
screw
598919
$2,27 Unit Price incl. VAT
37
Spring washer
709047
$0,08 Unit Price incl. VAT
38
Lateral headstock with U.P.
647214
Not Available
39
Steering bearing assy. L.H.
6007705
$139,05 Unit Price incl. VAT
40
Steering tube ring nut
011109
Not Available
41
Steering bearing assy. R.H.
6471835
Not Available
42
Steering tube ring nut
011109
Not Available
44
Screw M5x22
828662
$0,25 Unit Price incl. VAT
44
Brake piping slider
624854
$1,97 Unit Price incl. VAT
45
Upper thrust ring
600750
Not Available
46
Upper thrust ring
600750
Not Available
47
Cardan joint small cover
647202
$13,84 Unit Price incl. VAT
48
Central headstock bearing unit
601917
Not Available
49
O-ring 8,73x1,78-viton
224202
$0,66 Unit Price incl. VAT
50
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
