Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

1

Complete H.V. coil

1D001665

$25,08 Unit Price incl. VAT

2

Screw w/ flange

1A003001

$0,51 Unit Price incl. VAT

3

Washer

012528

$0,34 Unit Price incl. VAT

4

H.V. coil support bracket

1A005097

$3,83 Unit Price incl. VAT

5

Screw w/ flange M6x16

1A004277

$2,20 Unit Price incl. VAT

6

Wiring clip

1D001143

$0,34 Unit Price incl. VAT

7

Pipes/cables retainer spring

CM006903

$1,43 Unit Price incl. VAT

8

Dispositif de commande des clignotants

1D001261

Not Available

9

Device bracket

642317

$0,50 Unit Price incl. VAT

10

Fall sensor

680212

$56,87 Unit Price incl. VAT

11

Torx Screw

880285

$3,65 Unit Price incl. VAT

12

Washer Ã˜5,3xÃ˜10x0,5

006975

$0,17 Unit Price incl. VAT

13

Flat washer

669282

$1,43 Unit Price incl. VAT

14

USB port

1D002258

Not Available

14

USB port

1D001378R

Not Available

15

Centrale électronique

CM267106

Not Available

15

Centrale électronique

CM267110

$469,11 Unit Price incl. VAT

15

Centrale électronique

CM267103

$469,11 Unit Price incl. VAT

16

Tampon

1D001561

$1,10 Unit Price incl. VAT

17

Screw w/ flange M5x16

830061

$0,34 Unit Price incl. VAT

18

Flat washer 5,3x14x1

060201

Not Available

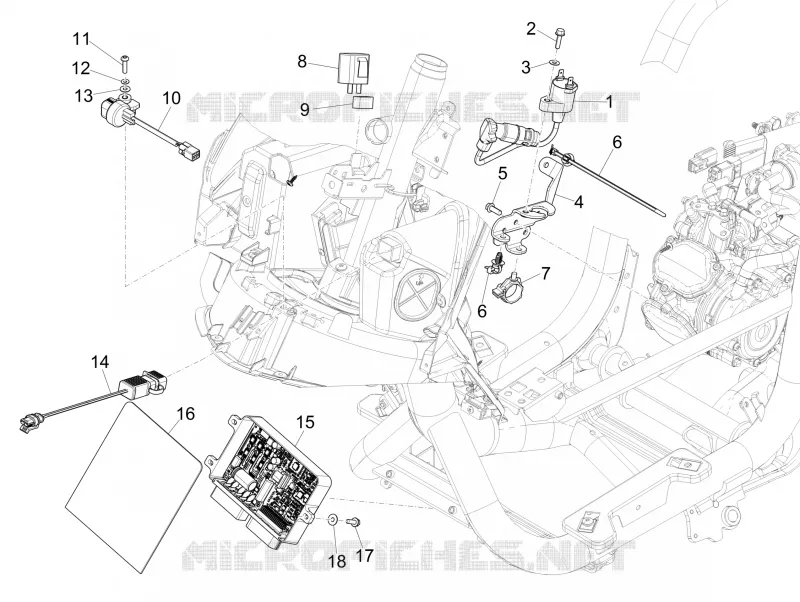

Find the detailed Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
