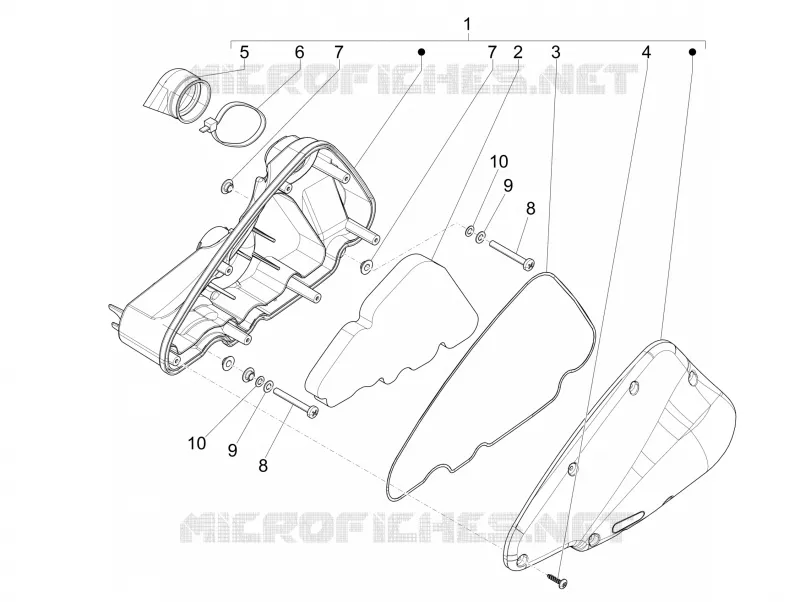

Air filter
10
10
9
9
8
8
7
7
6
5
4
3
2
1
1
Complete filter box
845676
$32,25 Unit Price incl. VAT
2
Air filter
875525
Not Available
3
Gasket
487286
$10,00 Unit Price incl. VAT
4
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
5
Air cleaner sleeve
845695
$5,36 Unit Price incl. VAT
6
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
7
Knurled bushing
830056
$0,34 Unit Price incl. VAT
8
Special cap screw M6x50
018640
$0,16 Unit Price incl. VAT
9
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
10
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
