Front shield for Liberty 4T PTT (D) from 2007

Front shield

1

Front shield

62193100VH

Not Available

1

Front shield

62193140R7

Not Available

1

Front shield

62193100BR

Not Available

1

Front shield

6219315087

Not Available

1

Front shield

6219310087

Not Available

1

Front shield

62193100R7

Not Available

1

Front shield

621931

$86,17 Unit Price incl. VAT

1

Front shield

6219314087

Not Available

2

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

3

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

4

Left front bulb closing element

63880150R7

$20,47 Unit Price incl. VAT

4

Left front bulb closing element

638801

Not Available

4

LOCK EL.

6388015087

$19,93 Unit Price incl. VAT

4

PLUG

6388014087

Not Available

4

LOCK EL.

63880100VH

$38,49 Unit Price incl. VAT

4

Left front bulb closing element

63880100BR

$31,21 Unit Price incl. VAT

5

Spring plate

CM017410

$0,34 Unit Price incl. VAT

6

Spring plate M6

254485

$0,34 Unit Price incl. VAT

7

Front booby hatch

62192900BR

$29,79 Unit Price incl. VAT

7

Front booby hatch

674670

Not Available

7

FRONT COVER

62192900R7

Not Available

7

Plastic Steering Cover

6219295087

$21,90 Unit Price incl. VAT

7

HORN COVER LIBERTY

62192900VH

Not Available

7

Front booby hatch

621929

Not Available

7

FRONT COVER

62192940R7

Not Available

7

FRONT COVER

6219294087

Not Available

7

Front booby hatch

67467000BR

$32,47 Unit Price incl. VAT

7

Front booby hatch

67467000R7

$28,09 Unit Price incl. VAT

8

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

9

Spring plate M6

254485

$0,34 Unit Price incl. VAT

10

Deflector l.h.

CM020001

Not Available

10

Deflector l.h.

CM0200010043

$29,77 Unit Price incl. VAT

11

Deflector r.h.

CM020002

Not Available

11

Deflector r.h.

CM0200020043

$29,77 Unit Price incl. VAT

12

PLUG

6388024087

Not Available

12

Right front bulb closing element

63880200BR

$31,21 Unit Price incl. VAT

12

PLUG

63880200R7

Not Available

12

PLUG

63880240R7

Not Available

12

LOCK EL.

6388025087

$19,93 Unit Price incl. VAT

12

LOCK EL.

63880200VH

Not Available

12

Right front bulb closing element

638802

Not Available

12

PLUG

6388020087

Not Available

13

Self tapping screw

297498

$0,08 Unit Price incl. VAT

14

screw 4,2x19

258249

$0,09 Unit Price incl. VAT

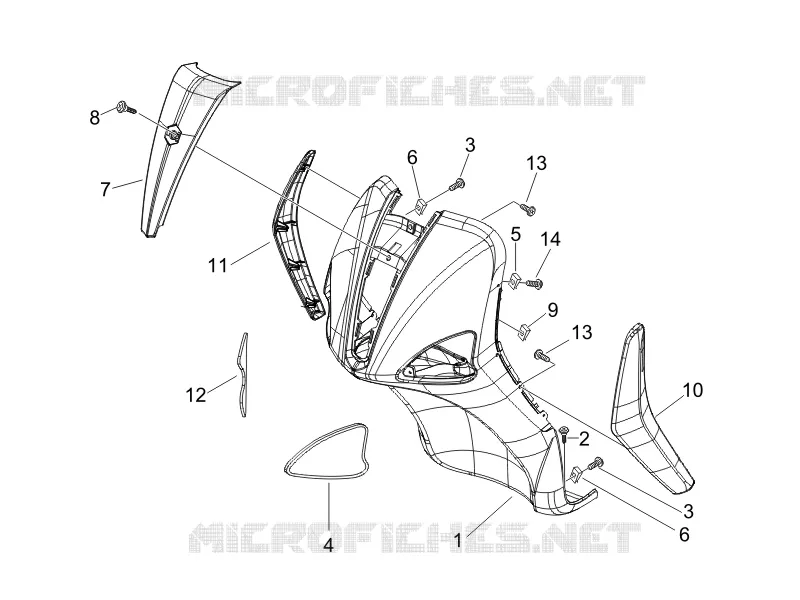

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
