Central cover - Footrests for Liberty 4T MOC from 2016

Central cover - Footrests

1

Footrest

65700700DL

$26,66 Unit Price incl. VAT

1

Footrest

657007000C

$25,73 Unit Price incl. VAT

2

Torx convex big end screw

B016796

$13,76 Unit Price incl. VAT

3

Spring plate M5

248419

$0,67 Unit Price incl. VAT

3

Spring plate

CM017410

$0,34 Unit Price incl. VAT

4

Spark plug access flap

65574000C5

$35,70 Unit Price incl. VAT

4

Spark plug access flap

65574000AL

$33,57 Unit Price incl. VAT

4

Spark plug access flap

65574000BU

$22,45 Unit Price incl. VAT

4

Spark plug access flap

65574000BT

Not Available

4

Spark plug access flap

65574000YA2

$39,53 Unit Price incl. VAT

4

Spark plug access flap

65574000P3

$38,27 Unit Price incl. VAT

4

Spark plug access flap

65574000XN2

$34,38 Unit Price incl. VAT

4

Spark plug access flap

65574000NN

$24,03 Unit Price incl. VAT

4

Spark plug access flap

65574000DO

$24,20 Unit Price incl. VAT

4

Spark plug access flap

65574000EU

$34,50 Unit Price incl. VAT

4

Spark plug access flap

65574000BR

$34,22 Unit Price incl. VAT

4

Spark plug access flap

655740

$15,93 Unit Price incl. VAT

5

Self tapping screw D4.2x13

CM178603

$0,16 Unit Price incl. VAT

6

Spring plate

CM017410

$0,34 Unit Price incl. VAT

7

Complete left passenger footrest

656030000C

Not Available

8

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

9

Elastic spring

259933

$0,08 Unit Price incl. VAT

10

Premisphere spring

295590

$4,82 Unit Price incl. VAT

11

Ball D6

295591

$5,38 Unit Price incl. VAT

12

Rubber for left footrest

656031

$26,13 Unit Price incl. VAT

13

screw

975805

$3,65 Unit Price incl. VAT

14

Complete right passenger footrest

656032000C

Not Available

15

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

16

Elastic spring

259933

$0,08 Unit Price incl. VAT

17

Premisphere spring

295590

$4,82 Unit Price incl. VAT

18

Ball D6

295591

$5,38 Unit Price incl. VAT

19

screw

975805

$3,65 Unit Price incl. VAT

20

Rubber for right footrest

656033

$26,13 Unit Price incl. VAT

21

Plain washer 10,4x18x2

016626

$0,08 Unit Price incl. VAT

22

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

22

Nut

564878

$2,99 Unit Price incl. VAT

23

Spring plate M6

254485

$0,34 Unit Price incl. VAT

24

Metric screw TBC

CM179302

$0,55 Unit Price incl. VAT

25

screw M6x25

CM179305

$0,25 Unit Price incl. VAT

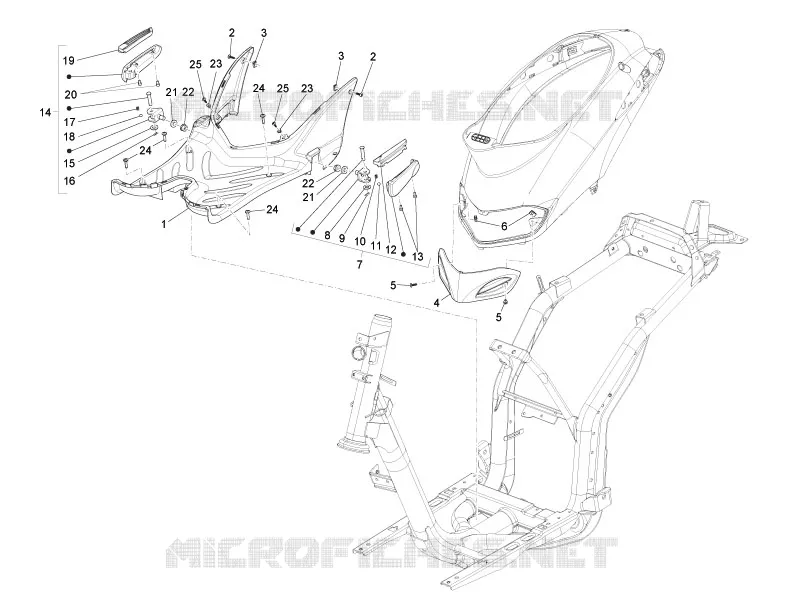

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
