Oil pump for GILERA PIAGGIO VESPA Liberty 4T 3V from 2022

Oil pump

1

POMPA OLIO COMPLETA

877262

$19,50 Unit Price incl. VAT

2

VITE A TESTA ESAGONALE FLANG. PAR. FIL.

433477

$0,19 Unit Price incl. VAT

3

GUARNIZ.CARTER/POMPA OLIO k9

436751

$4,89 Unit Price incl. VAT

4

ANELLO O-RING 12.42/1. k9

434947

$2,99 Unit Price incl. VAT

5

CORONA POMPA OLIO

287913

$6,47 Unit Price incl. VAT

6

MOLLA A TAZZA

436695

$0,59 Unit Price incl. VAT

7

VITE TEF M6X14

B016426

$0,42 Unit Price incl. VAT

8

CATENA POMPA OLIO

434447

$11,51 Unit Price incl. VAT

9

COPPA OLIO MOTORE

844871

$16,21 Unit Price incl. VAT

10

Screw w/ flange M6x25

414837

Not Available

11

FASCETTA

1C002006

$3,65 Unit Price incl. VAT

12

GUARNIZIONE COPPA OLIO

969132

$1,35 Unit Price incl. VAT

13

ASTA LIVELLO OLIO

844721

$2,69 Unit Price incl. VAT

14

O-ring

479986

Not Available

15

COPERCHIO DISTRIBUZ.COMPL.

478324

$34,40 Unit Price incl. VAT

16

TAMPONE CATENA POMPA OLIO.

434345

$2,77 Unit Price incl. VAT

17

ANELLO DI TENUTA k3

2879633

$9,33 Unit Price incl. VAT

18

ANELLO DI TENUTA (O-RING)

844888

$3,70 Unit Price incl. VAT

19

VITE A TESTA ESAGONALE FLANGIATA

484123

$0,16 Unit Price incl. VAT

20

PIGNONE POMPA OLIO

833495

$361,56 Unit Price incl. VAT

21

RONDELLA PARAOLIO

430535

$3,70 Unit Price incl. VAT

22

Timing system chain pinion cpl

969747

Not Available

23

PATTINO FISSO

969877

$7,23 Unit Price incl. VAT

24

CATENA DISTRIBUZIONE

96933R

$42,47 Unit Price incl. VAT

25

ASTA TENDICATENA

828561

$22,11 Unit Price incl. VAT

26

VITE TESTA ES. INTERAMENTE FIL. M6x18

031089

$2,99 Unit Price incl. VAT

27

Spacer

478247

Not Available

28

Chain tensioner bracket

847277

Not Available

29

VITE TEF M6X14

B016426

$0,42 Unit Price incl. VAT

30

GUARNIZIONE CIL./SUPP.TENDICATENA

847928

$0,42 Unit Price incl. VAT

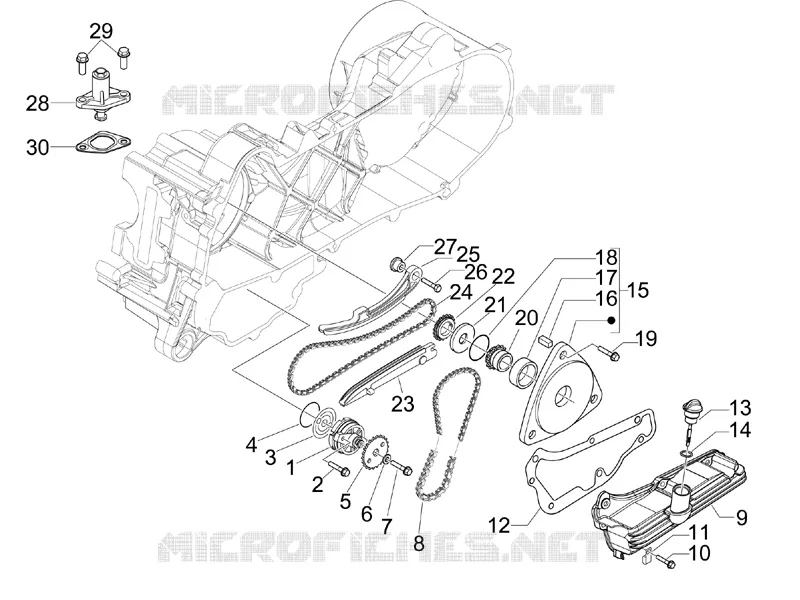

Find the detailed Oil pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
