by

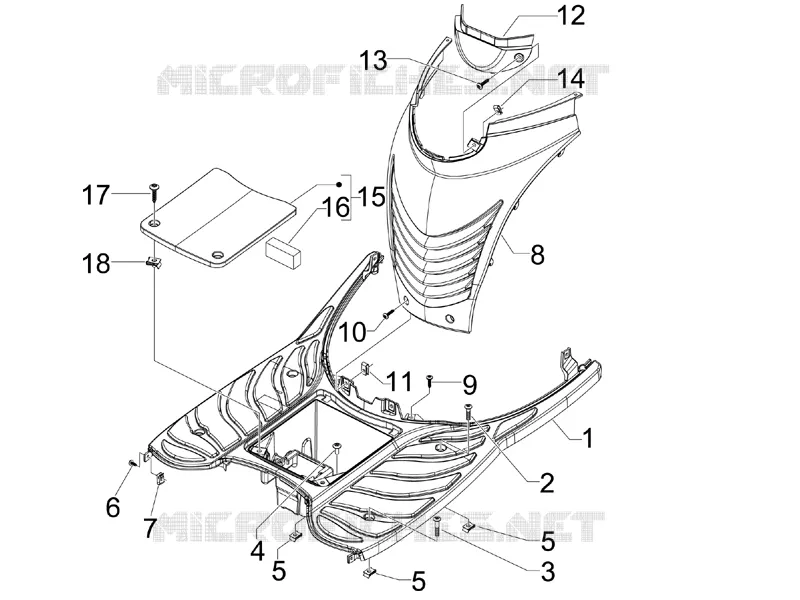

Central cover - Footrests
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Footrest
655609000C
$40,08 Unit Price incl. VAT
2
screw M6x40
272624
Not Available
3
Screw m6x30
271891
$3,65 Unit Price incl. VAT
4
Screw M6x16
272836
$3,70 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
6
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
7
Spring plate
CM017410
$0,34 Unit Price incl. VAT
8
Undersaddle
653263000C
$9,25 Unit Price incl. VAT
9
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
10
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
11
Spring plate
CM017410
$0,34 Unit Price incl. VAT
12
Under seat cover
653266000C
$1,75 Unit Price incl. VAT
13
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
14
Spring plate
CM017410
$0,34 Unit Price incl. VAT
15
Complete battery flap
653261
Not Available
15
Complete battery flap
653261000C
Not Available
16
Pad
258737
Not Available
17
Screw M6x16
272836
$3,70 Unit Price incl. VAT
18
Spring plate M6
254485
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
