Crankcase for GILERA PIAGGIO VESPA Liberty iGet 4T 3V ie ABS from 2018

Rear cover - Splash guard

Brakes pipes - Calipers (ABS)

Crankcase

1

CARTER COMPLETO 2ª CLASSE x RICAMBI

CM2725050B

$820,74 Unit Price incl. VAT

1

CARTER COMPLETO 1ª CLASSE x RICAMBI

CM2725050A

$1 878,18 Unit Price incl. VAT

2

UGELLO CALIBRATO PER CARTER

B018059

$0,59 Unit Price incl. VAT

3

Pin 6,5x9,5x15

239388

Not Available

4

TAPPO FILETTATO CONICO M12x1,5x11

B015433

$2,66 Unit Price incl. VAT

5

UGELLO CALIBRATO

880706

$2,61 Unit Price incl. VAT

6

GRANO DI RIFERIMENTO

B015957

$0,59 Unit Price incl. VAT

7

CUSCINETTO RADIALE 22.50.14

83027R

$9,16 Unit Price incl. VAT

8

CUSCINETTO RADIALE 15.42.13

83026R

$4,46 Unit Price incl. VAT

9

PRIGIONIERO

1A001406

$3,61 Unit Price incl. VAT

10

SILENTBLOC ATT. MOTORE

1A008919R

$8,32 Unit Price incl. VAT

11

Locating dowel

B015958

$3,65 Unit Price incl. VAT

12

ANELLO ELASTICO (12x26,9x1,2)

B015959

$0,34 Unit Price incl. VAT

13

Gasket ring 22x35x7

B014137

$3,65 Unit Price incl. VAT

14

screw TEF M6x60

1A000322

Not Available

15

ANELLO DI TENUTA (O-RING)

273754

$0,16 Unit Price incl. VAT

16

Oil pressure adjusting valve

B015432

$2,61 Unit Price incl. VAT

17

screw TEF M6x60

1A000322

Not Available

18

Half crankcase gasket

B015429

$0,92 Unit Price incl. VAT

19

VITE A TESTA ESAGONALE FLANGIATA

830061

$0,34 Unit Price incl. VAT

20

PARATIA OLIO

B014134

$4,12 Unit Price incl. VAT

21

PARATIA OLIO SUPERIORE

B014135

$2,02 Unit Price incl. VAT

22

MOLLA VALVOLA PRESSIONE OLIO

B015431

$0,50 Unit Price incl. VAT

23

INSERTO PORTA FILTRO COMPLETO

B015430

$3,87 Unit Price incl. VAT

24

GUARNIZIONE SEZ.CIRCOLARE

431065

$0,42 Unit Price incl. VAT

25

LAMIERINO RITEGNO CORONA AVVIAMENTO

876646

$0,76 Unit Price incl. VAT

26

Screw M6x14

B016000

Not Available

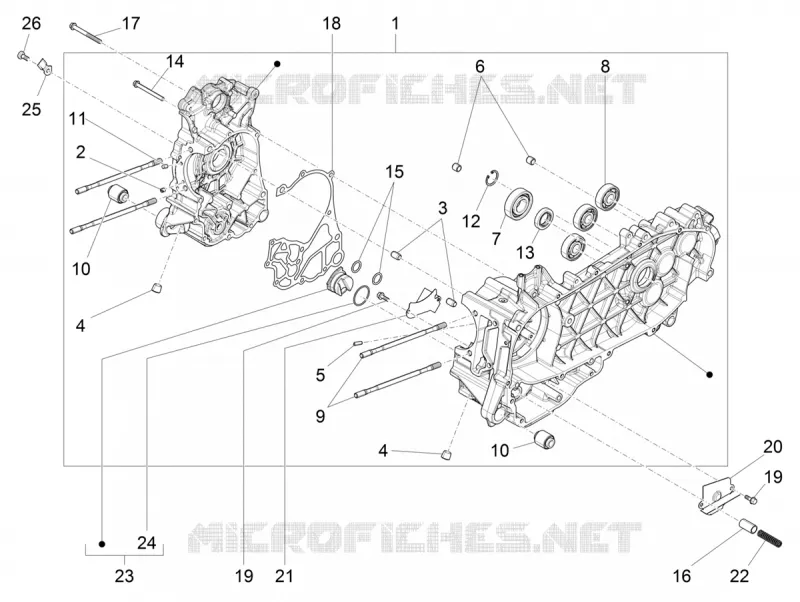

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
