EXHAUST FOR Liberty iGet 4T 3V ie ABS FROM 2021

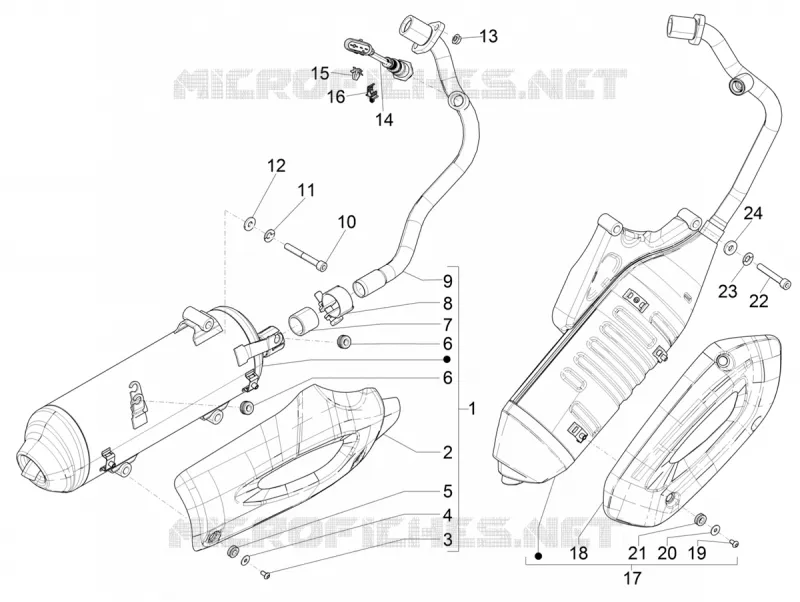

EXHAUST

1

Pot d'échappement avec protection

1A0062285

$417,81 Unit Price incl. VAT

1

Pot d'échappement avec protection

1A0059065

$431,64 Unit Price incl. VAT

2

Protection

1A006192

$46,26 Unit Price incl. VAT

2

Protection

1A005915

$46,26 Unit Price incl. VAT

3

Hex socket screw M5x10

651014

$0,17 Unit Price incl. VAT

3

screw M5x10

842908

Not Available

4

Flat washer

827526

$0,25 Unit Price incl. VAT

4

Washer 6,6x18x1,6

841821

$0,37 Unit Price incl. VAT

5

Fairlead

487665

$0,84 Unit Price incl. VAT

6

Fairlead

B013302

$5,53 Unit Price incl. VAT

7

Graphite bushing

1A003106

$6,60 Unit Price incl. VAT

8

Hose clamp

1A003118

Not Available

9

Exhaust manifold with I.P.

1A005846

$141,75 Unit Price incl. VAT

10

Hex socket screw

845590

$0,92 Unit Price incl. VAT

11

Spring washer 16x8,2x2,2

834187

$0,16 Unit Price incl. VAT

12

Flat washer 19,3x8,2x2,5

848452

$0,84 Unit Price incl. VAT

13

Nut

436947

$0,42 Unit Price incl. VAT

14

Lamda sensor l. 325 mm

584344

$93,68 Unit Price incl. VAT

15

Spring for connector

639560

$0,67 Unit Price incl. VAT

16

Hose clamp

D9004464092

$0,59 Unit Price incl. VAT

17

Pot d'échappement avec protection

1A0114645

$876,47 Unit Price incl. VAT

17

Pot d'échappement avec protection

1A0078865

Not Available

17

Pot d'échappement avec protection

1A0190935

$587,39 Unit Price incl. VAT

17

Pot d'échappement avec protection

1A0157995

$1 082,13 Unit Price incl. VAT

17

Pot d'échappement avec protection

1A0114625

$403,37 Unit Price incl. VAT

18

Protection

1A007751

$21,19 Unit Price incl. VAT

18

Protection

1A019059

$22,23 Unit Price incl. VAT

18

Protection

1A007692

$29,89 Unit Price incl. VAT

19

Hex socket screw M5x10

651014

$0,17 Unit Price incl. VAT

19

screw M5x10

842908

Not Available

20

Flat washer

827526

$0,25 Unit Price incl. VAT

20

Washer 6,6x18x1,6

841821

$0,37 Unit Price incl. VAT

21

Fairlead

487665

$0,84 Unit Price incl. VAT

22

Hex socket screw M8x55

872997

$0,84 Unit Price incl. VAT

23

Spring washer 16x8,2x2,2

834187

$0,16 Unit Price incl. VAT

24

Washer

709012

$0,76 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
