Air filter for GILERA PIAGGIO VESPA Carnaby 4T E3 from 2007

Air filter

1

Air cleaner case

871806

Not Available

2

GUARNIZIONE

829259

$14,30 Unit Price incl. VAT

3

Hose clip 35-33

830015

Not Available

4

VITE AUTOFILETTANTE (3X20)

258146

$0,25 Unit Price incl. VAT

6

Carburettor flange

849658

Not Available

7

MANICOTTO DEPURATORE/VEICOLO

845996

$42,72 Unit Price incl. VAT

8

FASCETTA STRINGITUBO

CM002910

$0,59 Unit Price incl. VAT

9

FASCETTA STRINGITUBO 50/70

260918

$1,68 Unit Price incl. VAT

9

FASCETTA STRINGITUBO 61.5-65.5

253293

$3,65 Unit Price incl. VAT

10

BOCCOLA ZIGRINATA

830056

$0,34 Unit Price incl. VAT

11

BOCCOLA

830057

$1,01 Unit Price incl. VAT

12

Air filter

829258

Not Available

13

VITE (M6X35)

414838

$0,67 Unit Price incl. VAT

15

VITE

018640

$0,16 Unit Price incl. VAT

16

RONDELLA PIANA 6,4x12x1

003056

$0,08 Unit Price incl. VAT

17

ROSETTA ELASTICA PIANA CON DENT.ESTERNA

012533

$0,67 Unit Price incl. VAT

18

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

19

ROSETTA ELASTICA PIANA CON DENT.ESTERNA

012533

$0,67 Unit Price incl. VAT

20

screw

259166

Not Available

22

CAPPUCCIO SCATOLA DEPURATORE

827831

$2,60 Unit Price incl. VAT

23

FASCETTA STRINGITUBO

CM001904

$0,75 Unit Price incl. VAT

24

BUSSOLA

AP8121032

$0,59 Unit Price incl. VAT

25

PROTEZIONE CASSA FILTRO

652967

$6,30 Unit Price incl. VAT

26

BUSSOLA

AP8121032

$0,59 Unit Price incl. VAT

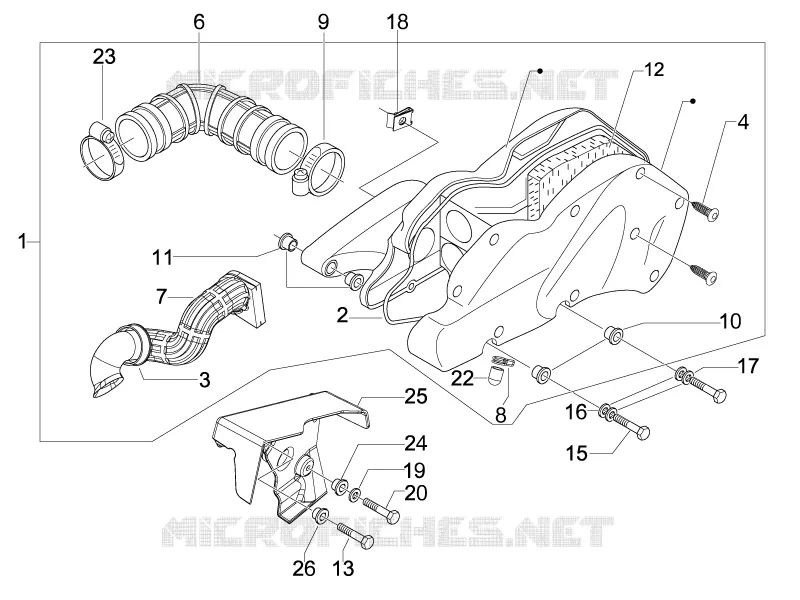

Find the detailed Air filter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
