Flywheel magneto cover - Oil filter for GILERA PIAGGIO VESPA Carnaby 4T E3 from 2008

Flywheel magneto cover - Oil filter

1

Flywheel cover cpl.

8482595

Not Available

2

SAS valve

82731R

$89,76 Unit Price incl. VAT

3

GUARNIZ.IN GOMMA S.A.S

831256

$4,82 Unit Price incl. VAT

4

ELEMENTO FILTRANTE S.A.S.

831257

$3,78 Unit Price incl. VAT

5

GUARNIZIONE

831258

$4,82 Unit Price incl. VAT

6

COPERCHIO SCATOLA S.A.S.

831255

$7,69 Unit Price incl. VAT

7

VITE TCCIC M5X22 (5.8)

828662

$0,25 Unit Price incl. VAT

8

TUBO ASPIRAZIONE SAS

848080

$43,65 Unit Price incl. VAT

9

Water pump rod with U.P.

845633

Not Available

10

Gasket ring

842595

Not Available

11

GIRANTE POMPA ACQUA

844730

$3,01 Unit Price incl. VAT

12

GIUNTO DI TRASCINAMENTO POMPA H2O

872908

$7,70 Unit Price incl. VAT

13

VITE

296458

$2,25 Unit Price incl. VAT

14

RONDELLA ELASTICA CURVATA (D10 F5,3)

006965

$0,08 Unit Price incl. VAT

15

RONDELLA PIANA 12x5,2x1

006078

$0,08 Unit Price incl. VAT

16

screw

828569

Not Available

16

VITE CON TAMPONE VULCANIZZATO

82869R

$12,36 Unit Price incl. VAT

16

SCREW WITH VULCANIZED PLUG

82859R

Not Available

17

RONDELLA PIANA

828535

$2,99 Unit Price incl. VAT

18

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

19

VITE A TESTA CIL.INC.

828493

$2,95 Unit Price incl. VAT

20

RONDELLA ELASTICA CURVATA (D10 F5,3)

006965

$0,08 Unit Price incl. VAT

21

Oil filter plug

82823R

Not Available

21

TAPPO FILTRO OLIO

826165

$5,88 Unit Price incl. VAT

22

GUARNIZIONE OR 31,47x1,78

285536

$0,92 Unit Price incl. VAT

23

FILTRO OLIO ASPIRAZIONE COMPL.

483841

$3,55 Unit Price incl. VAT

24

ANELLO OR 20,35X1,78

288474

$0,08 Unit Price incl. VAT

25

Oil filter

82635R

$12,36 Unit Price incl. VAT

26

VITE SPECIALE FILTRO OLIO

483776

$1,49 Unit Price incl. VAT

27

Oil pressure sensor

82580R

$16,59 Unit Price incl. VAT

27

Oil pressure sensor

826161

Not Available

28

ROSETTA (16X10.5X2.5)

486075

$1,58 Unit Price incl. VAT

29

TAPPO CONTR.FASATURA

825529

$5,38 Unit Price incl. VAT

30

FASCETTA

825481

$3,38 Unit Price incl. VAT

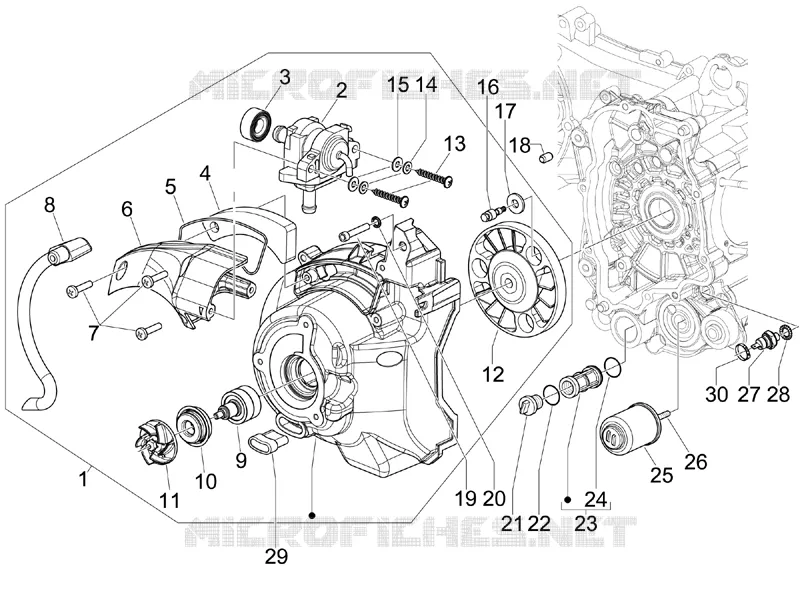

Find the detailed Flywheel magneto cover - Oil filter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
