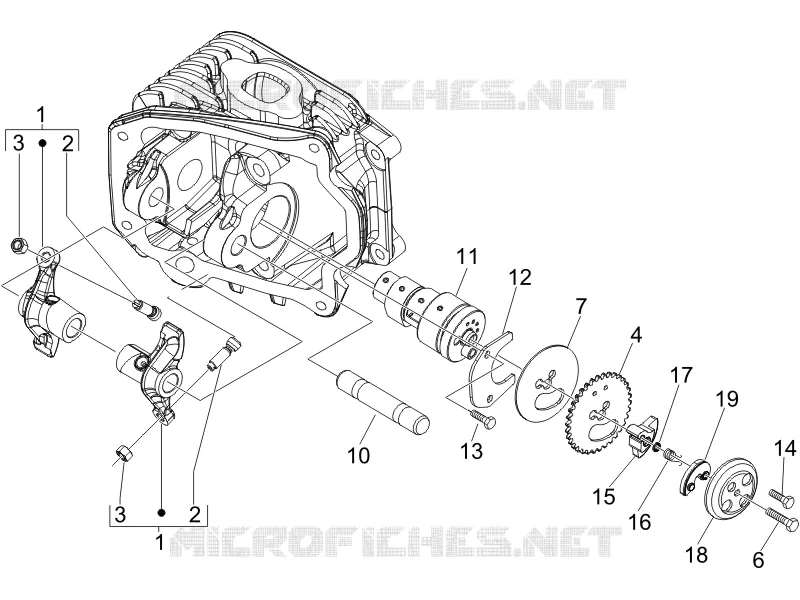

Rocking levers support unit
1
1
2
2
3
3
4
6
7
10
11
12
13
14
15
16
17
18
19
1
Rocker arm cpl.
8444895
$26,99 Unit Price incl. VAT
2
Adjuster screw
82817R
$8,01 Unit Price incl. VAT
3
Nut
484819
$0,24 Unit Price incl. VAT
4
Timing system gear
877771
$11,77 Unit Price incl. VAT
6
screw M6x35
414838
$0,67 Unit Price incl. VAT
7
Washer
487832
Not Available
10
Rocker arms axis
486339
$2,48 Unit Price incl. VAT
11
Camshaft
8459325
$118,19 Unit Price incl. VAT
12
Camshaft plate
877309
$1,41 Unit Price incl. VAT
13
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
14
Hex socket screw M5x30
1A003053
$0,84 Unit Price incl. VAT
15
Decompressor counterweight
880650
$4,82 Unit Price incl. VAT
16
Spring
486974
$0,15 Unit Price incl. VAT
17
Gasket
487833
$0,24 Unit Price incl. VAT
18
Decompression bell
880651
$7,94 Unit Price incl. VAT
19
Decompression counterweight
8291345
$21,17 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
