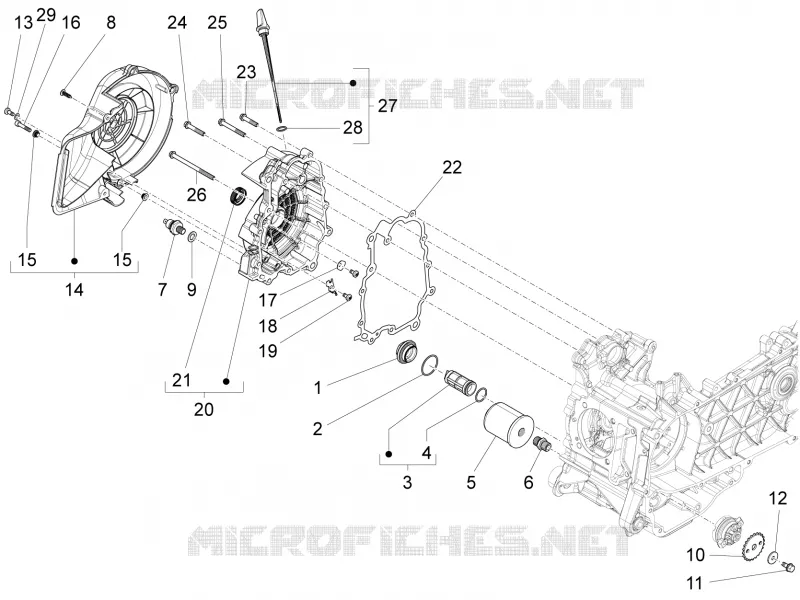

Flywheel magneto cover - Oil filter for Liberty 4T 3V ie E3 from 2013

Flywheel magneto cover - Oil filter

1

Oil filter plug

B015456

$14,30 Unit Price incl. VAT

2

O-ring 31,47x1,78

285536

$0,92 Unit Price incl. VAT

3

Intake oil filter

B015454

$2,52 Unit Price incl. VAT

4

O-ring 20,35x1,78

288474

$0,08 Unit Price incl. VAT

5

Oil filter

82635R

$12,36 Unit Price incl. VAT

6

Special screw

B015455

$3,87 Unit Price incl. VAT

7

Oil pressure sensor

641541

Not Available

8

Self tapping screw L=20 mm

267958

$0,25 Unit Price incl. VAT

9

Washer 10,5x17x1,5

B015988

$3,65 Unit Price incl. VAT

10

Oil pump gear

287913

$6,47 Unit Price incl. VAT

11

Screw w/ flange M6x14

B016426

$0,42 Unit Price incl. VAT

12

Belleville spring

B015991

$0,34 Unit Price incl. VAT

13

Self-tapping screw M5x12

015585

$0,08 Unit Price incl. VAT

13

Metric screw M5x20

1A000320

Not Available

14

Complete flywheel side duct

B017660

$35,51 Unit Price incl. VAT

14

Complete flywheel side duct

1A001451

Not Available

14

Complete flywheel side duct

1A003745

Not Available

15

Bushing

B015908

$1,18 Unit Price incl. VAT

16

Hex socket screw M5x25

486972

$0,09 Unit Price incl. VAT

17

Housing sheet

B018105

$1,77 Unit Price incl. VAT

18

Housing sheet

B018106

$1,35 Unit Price incl. VAT

19

Screw M5x10

018575

$2,95 Unit Price incl. VAT

20

Complete flywheel cover

8798545

$158,88 Unit Price incl. VAT

21

Gasket ring 14x28x7

B015692

$5,20 Unit Price incl. VAT

22

Flywheel housing cover gasket

877671

$4,12 Unit Price incl. VAT

23

Screw w/ flange M6x30

B015964

Not Available

23

Screw w/ flange M6x30

1A000317

Not Available

24

screw M6x35

414838

$0,67 Unit Price incl. VAT

25

Screw

620068

$3,65 Unit Price incl. VAT

26

Screw w/ flange M6x90

B016776

$0,67 Unit Price incl. VAT

26

Screw w/ flange M6x90

1A000318

Not Available

27

Oil dipstick

B017891

$5,38 Unit Price incl. VAT

27

Oil dipstick

1A000619

$2,19 Unit Price incl. VAT

28

O-ring

479986

Not Available

29

Plain washer 5,4x10x0,8

003055

$0,08 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
