Fuel tank for Liberty 4T 2V E3 from 2010

Fuel tank

1

Fuel tank

672407

Not Available

1

Fuel tank

656460

Not Available

2

Indicator fuel level

CM086812

$43,30 Unit Price incl. VAT

2

Indicator fuel level

CM075611

Not Available

2

Indicator fuel level

CM075612

Not Available

2

Level gauge

CM075610

Not Available

3

Plug

259832

$1,10 Unit Price incl. VAT

4

Tank cover gasket

258160

$1,00 Unit Price incl. VAT

5

Depression tap

575321

Not Available

6

Sheet edge spring

CM013203

$0,67 Unit Price incl. VAT

7

Gasket

196868

$3,70 Unit Price incl. VAT

8

Hose clamp

CM001901

$0,76 Unit Price incl. VAT

8

Hose clamp

CM002904

$0,42 Unit Price incl. VAT

9

Vacuum pipe

624592

Not Available

10

Hose clamp

CM001912

$3,65 Unit Price incl. VAT

11

Vacuum filter

624522

$16,73 Unit Price incl. VAT

12

pipe 3,25x8x70

CM027914

Not Available

13

Hose clamp

CM002907

$0,42 Unit Price incl. VAT

14

Hose clamp

CM001901

$0,76 Unit Price incl. VAT

15

Hose clamp

CM002901

$0,09 Unit Price incl. VAT

16

pipe

CM001204

Not Available

20

Cover

576725

$7,23 Unit Price incl. VAT

21

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

22

Fuel pipe SAE J30 R11-A O R12 3/16" (L=310)

CM178410

Not Available

22

Fuel pipe

CM006102

Not Available

23

Float chamber

622235

$1,05 Unit Price incl. VAT

24

screw

CM179202

$0,25 Unit Price incl. VAT

25

Hose clamp

CM002902

$2,99 Unit Price incl. VAT

26

Hose clamp

CM001912

$3,65 Unit Price incl. VAT

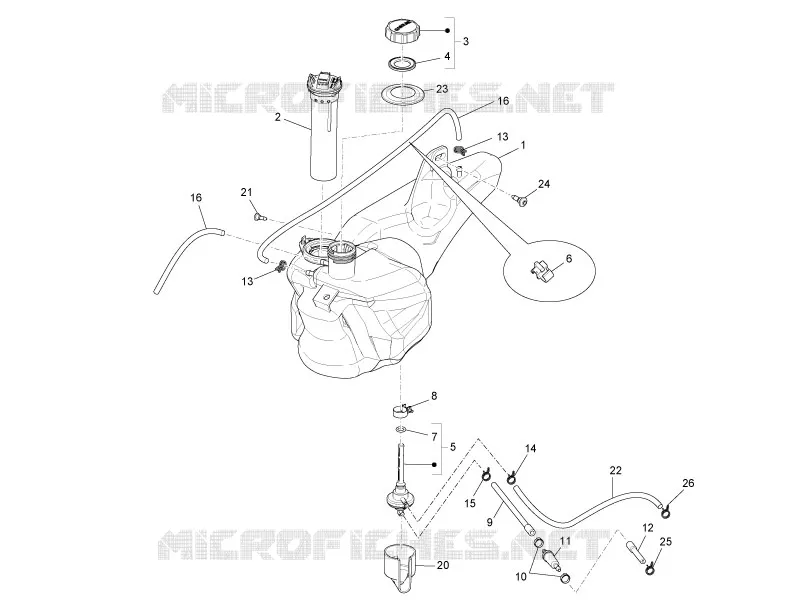

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
