by

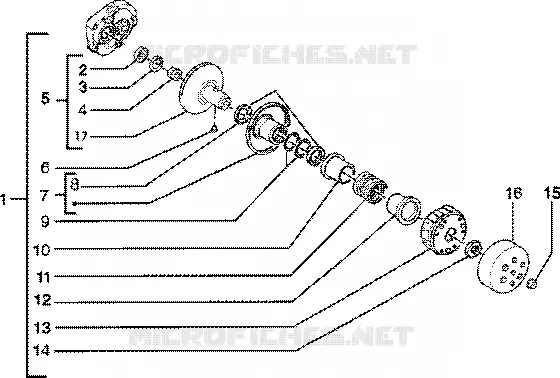

Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Secondary pulley
CM100109
$257,85 Unit Price incl. VAT
2
Bearing
289953
Not Available
3
Ring
006624
$2,99 Unit Price incl. VAT
4
Roller cage
289952
$5,97 Unit Price incl. VAT
5
Complete fixed secondary pulley
4795526
$162,29 Unit Price incl. VAT
6
Pin
482766
$3,70 Unit Price incl. VAT
7
Complete movable secondary pulley
827893
$94,53 Unit Price incl. VAT
8
Gasket ring
289950
$9,17 Unit Price incl. VAT
9
Gasket
289840
$1,26 Unit Price incl. VAT
10
Pulley side cap
483443
$3,70 Unit Price incl. VAT
11
Variator spring
478028
$17,60 Unit Price incl. VAT
12
Clutch side cap
487935
$20,91 Unit Price incl. VAT
13
Centrifugal clutch assy
CM100203
Not Available
13
Centrifugal clutch assy
CM1002045
$71,55 Unit Price incl. VAT
14
Ring nut
289955
$8,58 Unit Price incl. VAT
15
Flanged nut M10x1,25
289519
$0,56 Unit Price incl. VAT
16
Clutch drum
289933
$43,84 Unit Price incl. VAT
17
Variator spring
478028
$17,60 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
