1
Engine displacement
50
2
Model
ZIP
3
Year
0
4
Trim
Zip Fast Rider RST
5
Parts Catalog

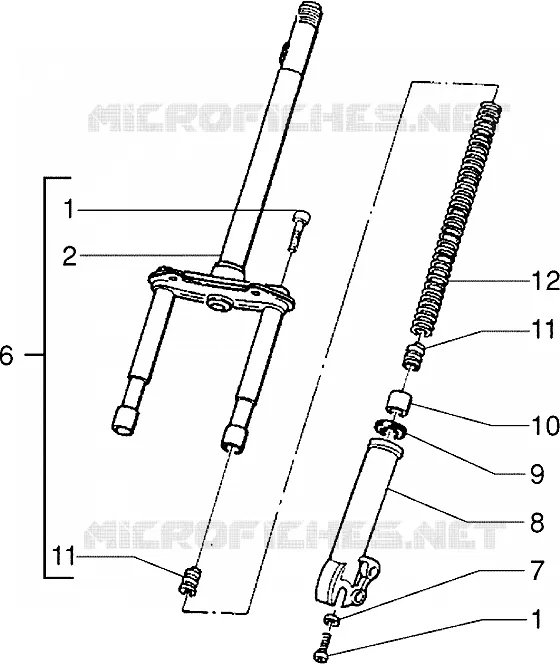

Steering column
6
Parts Diagram
Parts Catalog
Steering bearing ball tracks
by
Swinging arm
Steering column
1
1
2
6
7
8
9
10
11
11
12
1
screw
560394
Not Available
2
Front fork
560389
Not Available
6
Front fork
560430
Not Available
7
Gasket
560392
Not Available
8
pipe
560391
Not Available
8
pipe
560390
Not Available
9
Dust cover
274462
Not Available
9
Gasket ring
563238
$16,71 Unit Price incl. VAT
10
Ring
563239
Not Available
11
Pad
560400
Not Available
12
Connecting
560388
Not Available
13
Spring
560397
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
