by

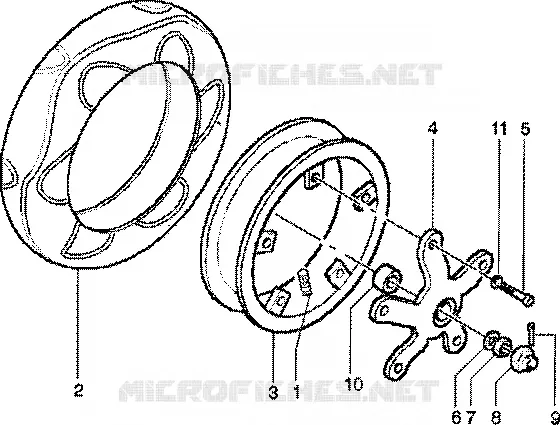

Rear wheel
1
2
3
4
5
6
7
8
9
10
11
1
Tubeless tyre valve
270991
$1,85 Unit Price incl. VAT
2
Tyre 120/70-10" Pirelli
560661
Not Available
2
Tyre
562372
Not Available
2
Tyre 120/70-10" Metzeler
564796
Not Available
2
Tyre 120/70-10" Vee Rubber
597030
$99,56 Unit Price incl. VAT
2
Tyre
564802
Not Available
2
Tyre
564808
Not Available
3
Wheel rim
600205000C
Not Available
3
Wheel
59732400E6
Not Available
4
Drum
56443900B1
Not Available
5
screw
319532
$3,65 Unit Price incl. VAT
6
Plain washer 34,8x16,2x3
273099
$3,70 Unit Price incl. VAT
7
Nut M16x13
563728
$1,42 Unit Price incl. VAT
8
Nut hold cap
194423
$0,48 Unit Price incl. VAT
9
Split pin
012789
$0,16 Unit Price incl. VAT
10
Spacer
487475
Not Available
10
Spacer
601205
$3,70 Unit Price incl. VAT
11
Spring washer
709047
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
