by

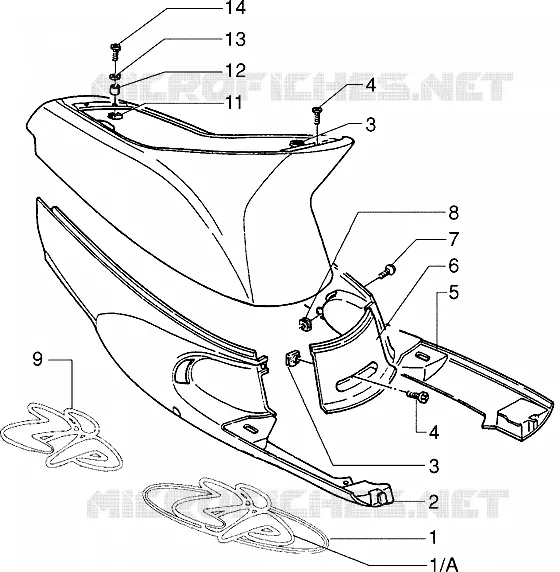

Side covers
1
1
2
3
3
4
4
5
6
7
8
9
11
12
13
14
1
Moulding
296512
Not Available
1
Moulding
295504
Not Available
1
Moulding
296513
Not Available
1
Moulding
295505
Not Available
2
Fairing,rh.
296673000A
Not Available
3
Spring plate
184142
Not Available
4
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
5
Fairing,lh.
296672000A
Not Available
5
Fairing
259672
Not Available
6
Flap
296685
Not Available
7
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Spring plate
184142
Not Available
10
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
11
Spring plate M6
254485
$0,34 Unit Price incl. VAT
12
Spacer
259363
Not Available
13
Washer
259365
Not Available
14
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
15
Band
9158905
Not Available
15
Band
9158175
Not Available
15
Plate
180859
$2,95 Unit Price incl. VAT
15
Band
9158045
Not Available
15
Band
9158095
Not Available
15
Band
9158005
Not Available
16
Reflector
259648
Not Available
16
Reflector
259649
Not Available
17
Name plate
299425
Not Available
18
Plug
297536
Not Available
19
Moulding
296860
Not Available
19
Moulding
296859
Not Available
20
Hook
296220
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
