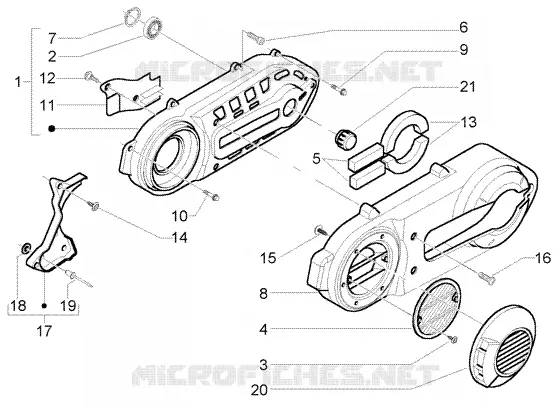

Crankcase Cooling
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Transmission cover
8423545
Not Available
2
Radial bearing
840277
$10,67 Unit Price incl. VAT
3
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
4
Air filter
833318
$13,95 Unit Price incl. VAT
5
Soundproofing material
833320
$12,45 Unit Price incl. VAT
6
Screw w/ flange M6x40
414834
$0,09 Unit Price incl. VAT
7
Circlip
825667
$0,42 Unit Price incl. VAT
8
Transmission soundproofing cover
833314
Not Available
9
screw
833663
$3,65 Unit Price incl. VAT
10
Screw m8x100
833664
$3,65 Unit Price incl. VAT
11
Deflector
842355
$5,38 Unit Price incl. VAT
12
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
13
Soundproofing material
833321
$12,45 Unit Price incl. VAT
14
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
15
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
16
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
17
Cooling Cover
620876
$23,22 Unit Price incl. VAT
18
Washer 4,5x12x1
016670
$0,09 Unit Price incl. VAT
19
Rivet
252099
$3,65 Unit Price incl. VAT
20
Air deflector
841490
$24,14 Unit Price incl. VAT
21
Transmission cover
840439
$8,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
