1
Engine displacement
250
2
Model
X9
3
Year
0
4
Trim
X9
5
Parts Catalog

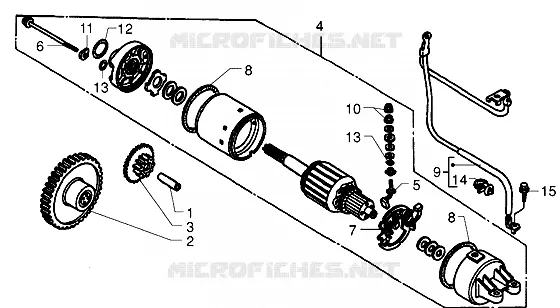

Starting motor
6
Parts Diagram
Parts Catalog
by
Crankcase cover, clutch side
Starting motor
1
2
3
4
5
6
7
8
8
9
10
11
12
13
13
14
15
1
Shaft pin
496275
Not Available
2
Toothed wheel
496276
Not Available
3
Toothed wheel
496277
Not Available
4
Starter motor
496278
Not Available
5
Brush
495181
Not Available
6
screw
495183
Not Available
7
Brushes support
495184
Not Available
8
Ring
495185
Not Available
9
Wire 32610kfg000
496279
Not Available
10
Nut
495210
Not Available
11
Plate
495216
Not Available
12
Ring
495270
Not Available
13
Ring
495271
Not Available
14
Band
496280
Not Available
15
screw
495314
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
