HEAD-VALVES for GILERA PIAGGIO VESPA X8

HEAD-VALVES

1

SEMICONI

285846

$2,94 Unit Price incl. VAT

2

SCODELLINO SUPERIORE

483914

$0,91 Unit Price incl. VAT

3

MOLLA VALVOLA

828480

$2,25 Unit Price incl. VAT

4

ANELLO DI TENUTA VALVOLA K8

436438

$1,34 Unit Price incl. VAT

5

SCODELLINO INFERIORE

483711

$1,35 Unit Price incl. VAT

6

Intake valve

484733

$16,91 Unit Price incl. VAT

6

Exaust valve

484734

$24,59 Unit Price incl. VAT

6

Intake valve

843362

$16,91 Unit Price incl. VAT

7

Cylinder/head gasket

829983

$17,69 Unit Price incl. VAT

7

GUARNIZIONE TESTA/CILINDRO

831174

$5,82 Unit Price incl. VAT

7

GUARNIZIONE CILINDRO-TESTA

829265

$29,70 Unit Price incl. VAT

8

Cylinder head

843506

Not Available

8

Cylinder head

832354

Not Available

9

HEXAGONAL FLANGED HEAD SCREW

485603

$0,68 Unit Price incl. VAT

10

Locating dowel Ã˜11x10

478115

$0,24 Unit Price incl. VAT

11

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

12

PRIGIONIERO SPECIALE

435629

$0,67 Unit Price incl. VAT

13

GUARNIZIONE SCARICO K8

480853

$4,89 Unit Price incl. VAT

14

COPERCHIO TERMOSTATO

834393

$12,45 Unit Price incl. VAT

15

VITE TCCIC M5X22 (5.8)

828662

$0,25 Unit Price incl. VAT

16

Water thermostat

82710R

Not Available

17

COMANDO A TERMISTORE

82622R

$10,82 Unit Price incl. VAT

18

DADO M8X1.25 (CH.12)

411296

$0,50 Unit Price incl. VAT

19

FASCETTA STRINGITUBO

CM002903

$2,95 Unit Price incl. VAT

20

pipe

834394

Not Available

21

FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)

CM001908

$3,65 Unit Price incl. VAT

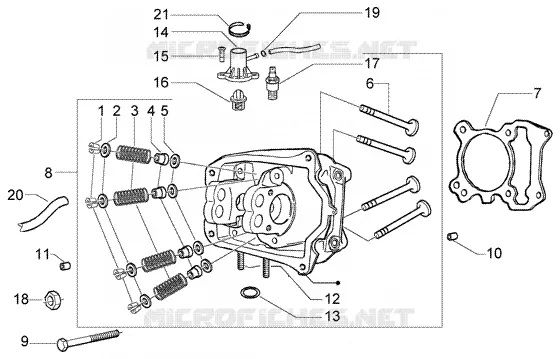

Find the detailed HEAD-VALVES GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
