Parts Catalog

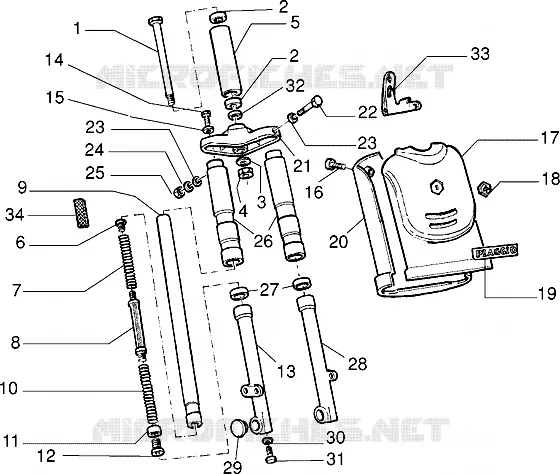

Front-wheel suspension
6
Parts Diagram
Parts Catalog
Handlebars component parts
by
Front mudguard
Front-wheel suspension
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
1
screw
273732
Not Available
2
Bearing 12x32x10
002800
Not Available
3
Washer
101422
$0,17 Unit Price incl. VAT
4
Nut m12x1,25 h=12,5
261319
$3,65 Unit Price incl. VAT
5
Spacer
273705
Not Available
6
Upper plug
274270
Not Available
7
Spring
274267
Not Available
8
Spacer
274269
Not Available
9
-
813784
Not Available
10
Spring
274268
Not Available
11
Pad
274444
Not Available
12
Lower plug
274271
Not Available
13
pipe
560024
Not Available
14
screw M8x35
030072
$3,65 Unit Price incl. VAT
15
Flat washer
274451
Not Available
16
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
17
Mask
2972160004
Not Available
17
Mask
297216
Not Available
17
Mask
2972160074
Not Available
17
Mask
2972160093
Not Available
17
Mask
2972160075
Not Available
17
Mask
2972160094
Not Available
17
Mask
2972160090
Not Available
17
Mask
2972160086
Not Available
17
Mask
2972160095
Not Available
17
Mask
2972160087
Not Available
18
Shield "Piaggio"
295486
$5,00 Unit Price incl. VAT
19
Piaggio name plate
298095
Not Available
19
Piaggio name plate
298094
Not Available
20
Mask
2972170093
Not Available
20
Mask
2972170087
Not Available
20
Mask
2972170004
Not Available
20
Mask
2972170090
Not Available
20
Mask
2972170095
Not Available
20
Mask
2972170094
Not Available
20
Mask
2972170075
Not Available
20
Mask
2972170074
Not Available
20
Mask
2972170086
Not Available
20
Mask
297217
Not Available
21
plate
5600160094
Not Available
21
plate
5600160090
Not Available
21
plate
560016
Not Available
21
plate
5600160086
Not Available
21
plate
5600160087
Not Available
21
plate
5600160095
Not Available
21
plate
5600160004
Not Available
21
plate
5600160074
Not Available
21
plate
5600165093
Not Available
21
plate
5600160075
Not Available
22
screw
810687
Not Available
23
Washer
810689
Not Available
24
Washer
012538
$2,95 Unit Price incl. VAT
25
Nut
810688
Not Available
26
pipe
5600280004
Not Available
26
pipe
5600280094
Not Available
26
pipe
560028
Not Available
26
pipe
5600280090
Not Available
26
pipe
5600280095
Not Available
26
pipe
5600280093
Not Available
26
pipe
5600280087
Not Available
26
pipe
5600280074
Not Available
26
pipe
5600280086
Not Available
26
pipe
5600280075
Not Available
27
Gasket ring
812415
Not Available
28
pipe
560029
Not Available
29
Plug
273682
Not Available
30
Gasket
808783
Not Available
31
Low head socket screw M6x30
122637
$0,28 Unit Price incl. VAT
32
Ring
440711
Not Available
33
Bracket
293753
Not Available
34
Reflector
293591
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
