by

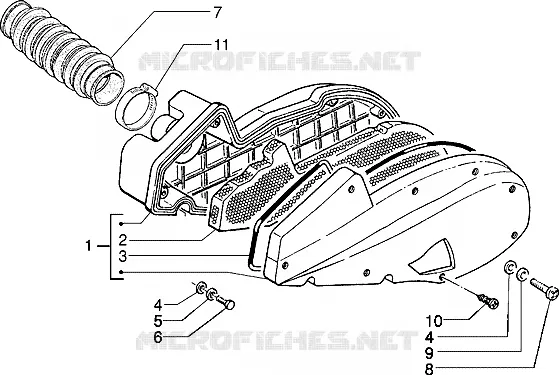

Air cleaner
8
9
1
2
3
4
4
4
5
6
7
10
11
1
Air filter
436468
Not Available
2
Air filter
478240
Not Available
3
Gasket
478117
Not Available
4
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
5
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
6
Special cap screw M6x50
018640
$0,16 Unit Price incl. VAT
7
Bellows
431863
$7,22 Unit Price incl. VAT
8
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
9
Flat washer
006125
$0,16 Unit Price incl. VAT
10
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
11
Hose clamp
109960
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
