1
Engine displacement
500
2
Model
BEVERLY
3
Year
2007
4
Trim
Beverly ie E3
5
Parts Catalog

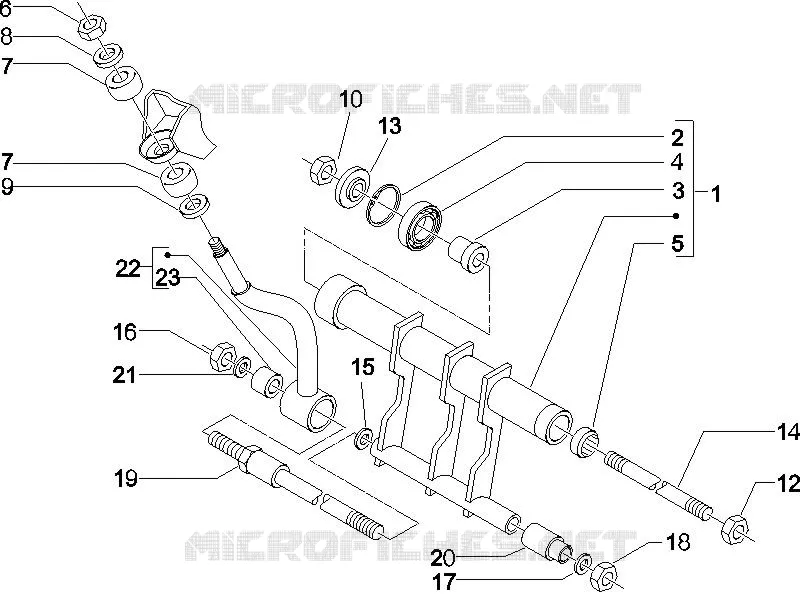

Swinging arm
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Fork/steering tube - Steering bearing unit
Swinging arm
1
2
3
4
5
6
7
7
8
9
10
12
13
14
15
16
17
18
19
20
21
22
23
1
Swinging arm
599752
Not Available
2
Snap ring
006635
$0,25 Unit Price incl. VAT
3
Spacer
597839
$5,20 Unit Price incl. VAT
4
Ball bearing
597844
Not Available
5
Roller cage
600161
$6,98 Unit Price incl. VAT
6
Nut M10x1,25 6H
833520
$0,42 Unit Price incl. VAT
7
Lower buffer
178149
$1,41 Unit Price incl. VAT
8
Washer 10,3x38x3
179326
$3,65 Unit Price incl. VAT
9
Plain washer 12,5x34x3
227199
$3,65 Unit Price incl. VAT
10
Self locking nut M10
232108
Not Available
10
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
11
Nut m12x1,25 h=12,5
261319
$3,65 Unit Price incl. VAT
12
Nut m22x2 h=8
564611
$3,65 Unit Price incl. VAT
13
Cup
597837
$3,65 Unit Price incl. VAT
14
Shaft
598279
$63,94 Unit Price incl. VAT
15
Washer
178902
$5,38 Unit Price incl. VAT
16
Nut m12x1,25 h=12,5
261319
$3,65 Unit Price incl. VAT
17
Washer
597868
$3,65 Unit Price incl. VAT
18
Nut
597869
$3,65 Unit Price incl. VAT
19
Shaft
598877
$49,18 Unit Price incl. VAT
20
Spacer
598878
$12,36 Unit Price incl. VAT
21
Washer
709037
$2,25 Unit Price incl. VAT
22
Tie rod assembly
599527
Not Available
23
Pad
597262
$10,00 Unit Price incl. VAT
24
Nut m12x1,25 h=12,5
261319
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
