Rear luggage rack for GILERA PIAGGIO VESPA Beverly ie E3 from 2007

Rear luggage rack

1

Luggage rack

6235250095

Not Available

1

Luggage rack cover

62335800E8

Not Available

1

COPERCHIO PORTAPACCHI

623358000C

$25,82 Unit Price incl. VAT

2

Hook

623526

$58,72 Unit Price incl. VAT

3

Pad

623610

$5,38 Unit Price incl. VAT

4

ROSETTA PIANA SEMILAVORATA

003038

$0,25 Unit Price incl. VAT

5

VITE

015792

$0,51 Unit Price incl. VAT

6

RONDELLA ELASTICA CON DENTATURA

012540

$0,08 Unit Price incl. VAT

7

VITE A TESTA ESAGONALE GAMBO FILETTATO

031120

$0,42 Unit Price incl. VAT

8

PIASTRINA ELASTICA

575268

$1,19 Unit Price incl. VAT

9

CLIPS S00651000

006510

$3,68 Unit Price incl. VAT

10

RONDELLA PIANA METALLICA

013880

$0,08 Unit Price incl. VAT

11

VITE A TESTA CILINDRICA M6X12

122675

$2,99 Unit Price incl. VAT

12

VITE A STRAPPO M6 H10

319195

$3,65 Unit Price incl. VAT

13

SUPPORTO ANTIFURTO

623523

$23,22 Unit Price incl. VAT

14

Self tapping screw

270723

Not Available

15

Luggage rack cover

62335800E8

Not Available

15

COPERCHIO PORTAPACCHI

623358000C

$25,82 Unit Price incl. VAT

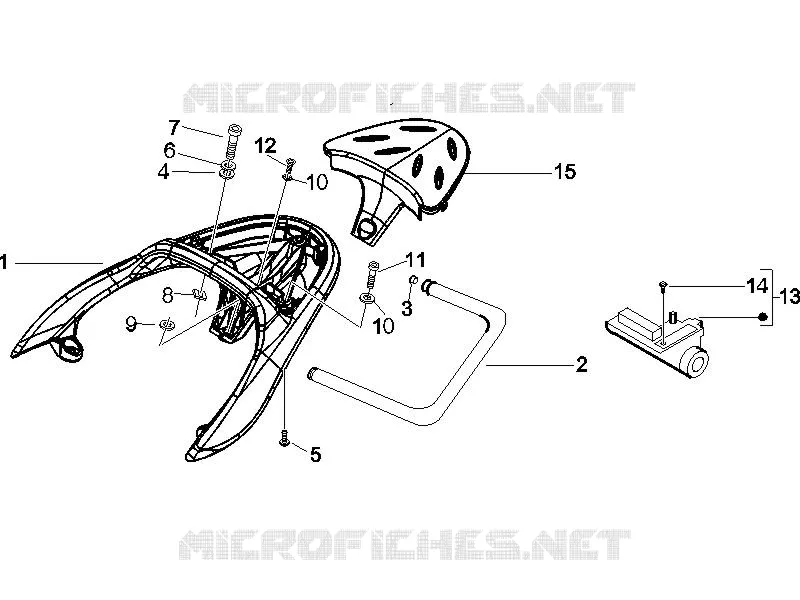

Find the detailed Rear luggage rack GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
