by

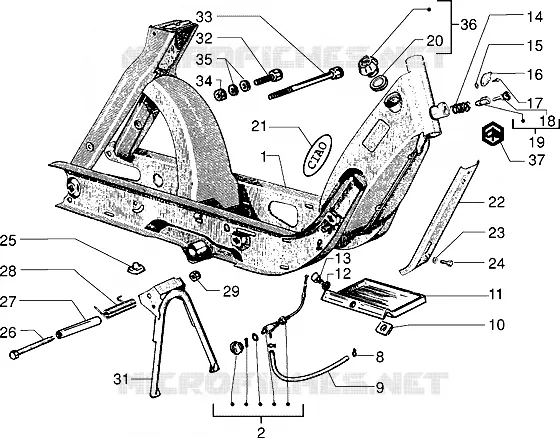

Chassis-Fuel cock-Dustcover
1
2
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
31
32
33
34
35
36
37
1
Frame
814000
Not Available
1
Frame
814060
Not Available
2
Cock
189525
Not Available
8
Hose clamp
CM002904
$0,42 Unit Price incl. VAT
9
Fuel pipe
CM004126
Not Available
10
Plate
008112
$0,05 Unit Price incl. VAT
11
Guard
14312201
Not Available
12
Washer 5,3x10x0
012532
$0,67 Unit Price incl. VAT
13
screw
268418
$3,65 Unit Price incl. VAT
14
Spring
258880
Not Available
15
Washer
006963
$2,95 Unit Price incl. VAT
16
Cover
070604
$0,69 Unit Price incl. VAT
17
Rivet
184048
Not Available
18
Key blank
193615
Not Available
19
Lock, assy.
573089
Not Available
20
Gasket
257121
$0,48 Unit Price incl. VAT
21
Name plate
813875
Not Available
22
Shield
813377
Not Available
23
Washer
013836
$0,09 Unit Price incl. VAT
24
Screw d3,5x9,5
008432
$3,65 Unit Price incl. VAT
25
Stop buffer
582885
$5,53 Unit Price incl. VAT
26
Bolt
030086
Not Available
27
Pin
214490
$15,89 Unit Price incl. VAT
28
Spring
139137
$1,31 Unit Price incl. VAT
28
Spring
139136
$1,31 Unit Price incl. VAT
29
Flanged nut
015341
$0,42 Unit Price incl. VAT
31
Central stand
25523001
Not Available
32
screw M6x25
031092
$1,56 Unit Price incl. VAT
33
Bolt
008977
Not Available
34
Nut M6
020106
$0,08 Unit Price incl. VAT
35
Flat washer
006176
Not Available
36
Tank cap
813970
Not Available
37
Piaggio logo clip-on badge
574771
$4,32 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
