Silencer for GILERA PIAGGIO VESPA Beverly Cruiser E3 from 2009

Silencer

1

Silencer complete with protection

8733145

Not Available

2

VITE TBEI FLANG M6X16 INOX

AP8152246

$0,27 Unit Price incl. VAT

3

RONDELLA ANTICALORE

AP8144064

$2,95 Unit Price incl. VAT

4

RONDELLA IN GOMMA

AP8144065

$5,38 Unit Price incl. VAT

6

DISTANZIALE FLANGIATO

851946

$1,54 Unit Price incl. VAT

7

Graphite bushing

874946

Not Available

8

VITE TESTA BOMBATA ESAGONALE

833569

$2,95 Unit Price incl. VAT

9

MOLLA A TAZZA

840782

$4,82 Unit Price incl. VAT

10

PROTEZIONE COLLETTORE MARMITTA

840263

$36,86 Unit Price incl. VAT

14

FASCETTA

874957

$18,12 Unit Price incl. VAT

16

PROTEZIONE MARMITTA

AP8119862

$78,24 Unit Price incl. VAT

18

GUARNIZ.MARMITTA-TESTA

828194

$7,94 Unit Price incl. VAT

19

VITE A TESTA CILINDRICA CON ESAGONO INCA

842502

$1,43 Unit Price incl. VAT

20

VITE TESTA BOMBATA CHIAVE TORX

599208

$0,62 Unit Price incl. VAT

21

Nut M8

020208

$2,95 Unit Price incl. VAT

22

Self locking nut M8

195483

Not Available

23

DADO AFR FLG M8 CL6S H

015341

$0,42 Unit Price incl. VAT

24

RONDELLA ELASTICA

007608

$2,95 Unit Price incl. VAT

25

RONDELLA PIANA

003058

$0,08 Unit Price incl. VAT

26

ROSETTA ELASTICA TIPO "CONTACT"

834187

$0,16 Unit Price incl. VAT

27

RONDELLA PIANA

840569

$3,65 Unit Price incl. VAT

28

RONDELLA PIANA

846163

$3,65 Unit Price incl. VAT

29

PERNO SUPP.ATTACCO MARMITTA

599391

$17,07 Unit Price incl. VAT

30

PERNO INF. ATTACCO FASCIA MARMITTA

599392

$8,91 Unit Price incl. VAT

31

Silencer support band

599553

Not Available

33

Lamda sensor

639806

Not Available

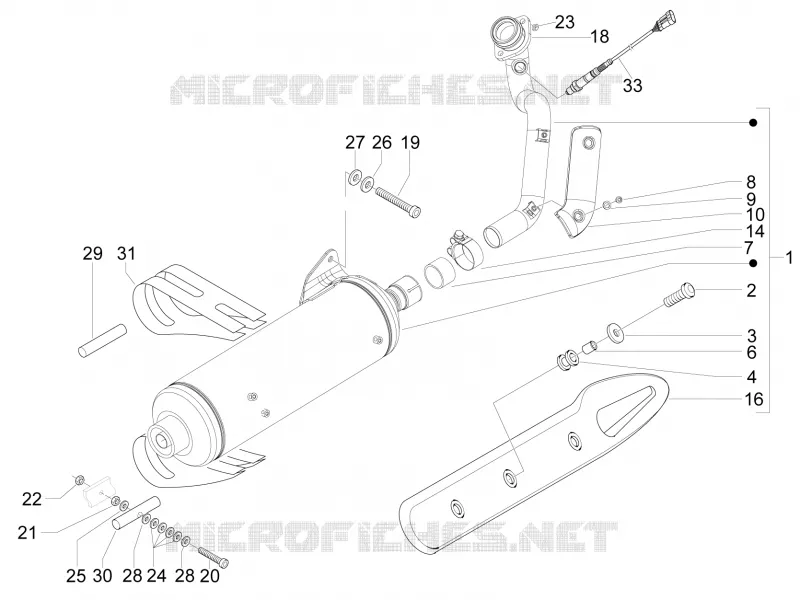

Find the detailed Silencer GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
