1
Engine displacement
125
2
Model
SFERA
3
Year
0
4
Trim
Sfera RST
5
Parts Catalog
Oil drain valve
6

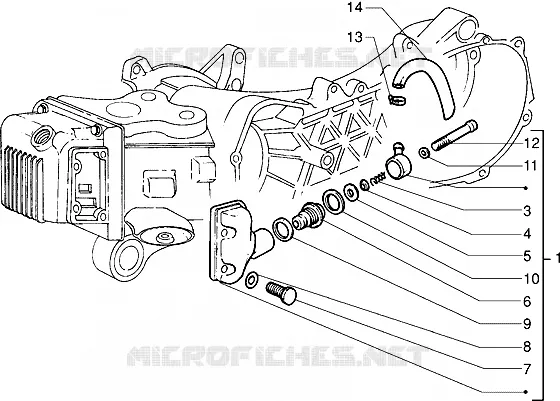

Parts Diagram
Parts Catalog
Cylinder head cover
by
Chain tightener - By-pass valve
Oil drain valve
1
3
4
5
6
7
8
9
10
11
12
13
14
1
Cover
4348935
Not Available
3
Spring
430771
Not Available
4
Cup
430770
Not Available
5
Oil breather diaphragm
430769
Not Available
6
Breather
430768
Not Available
7
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
8
Washer
016335
$0,07 Unit Price incl. VAT
9
Ring
478355
Not Available
10
Gasket
430772
Not Available
11
Gasket
224568
$1,10 Unit Price incl. VAT
12
Screw m6x70
434429
$0,60 Unit Price incl. VAT
13
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
14
Breather pipe
480358
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
