1
Engine displacement
125
2
Model
SFERA
3
Year
0
4
Trim
Sfera RST
5
Parts Catalog

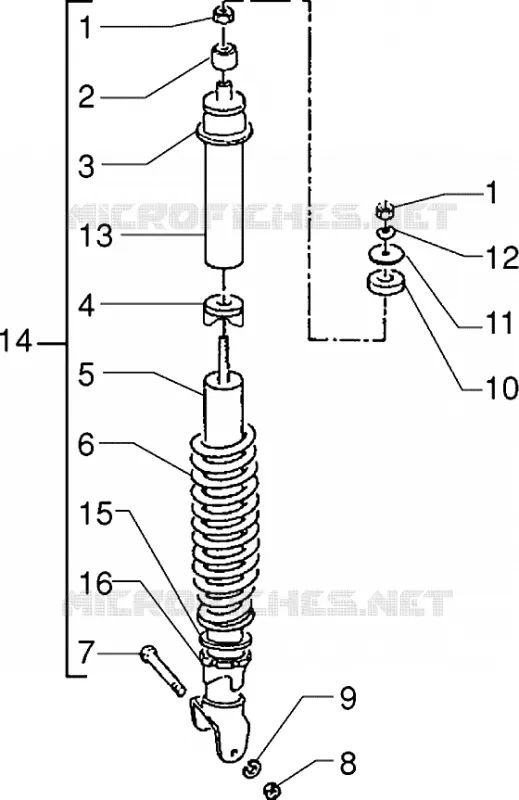

Rear shock absorber
6
Parts Diagram
Parts Catalog
Front shock absorber
by
Crankshaft
Rear shock absorber
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Nut M8
021108
$0,25 Unit Price incl. VAT
2
Lower buffer
178149
$1,41 Unit Price incl. VAT
3
Disc
2687064
$5,33 Unit Price incl. VAT
4
Pad
561127
Not Available
5
Shock absorber
561470
Not Available
6
Spring
560866
Not Available
7
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
8
Self locking nut M10
232108
Not Available
9
Plain washer 10,4x18x2
016626
$0,08 Unit Price incl. VAT
10
Upper buffer
178150
$0,92 Unit Price incl. VAT
11
Flat washer
267038
$0,67 Unit Price incl. VAT
12
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
13
Sleeve
268705
$0,33 Unit Price incl. VAT
14
Shock absorber
564110
Not Available
15
Disc
270432
Not Available
16
Housing
274860
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
