Head unit - Valve for GILERA PIAGGIO VESPA Beverly Cruiser E3 from 2010

Rear headlamps - Turn signal lamps

Side cover - Spoiler

Head unit - Valve

1

Cylinder head assy.

847398

Not Available

1

Cylinder head assembly

82988R

Not Available

1

TESTA CIL.CPL.(era 82988R4)X 460 MASTER

82988R1

$1 268,48 Unit Price incl. VAT

1

Cylinder head assembly

82914R

Not Available

2

SEMICONI

285846

$2,94 Unit Price incl. VAT

3

ANELLO DI TENUTA VALVOLA K8

436438

$1,34 Unit Price incl. VAT

4

MOLLA VALVOLA

826103

$2,67 Unit Price incl. VAT

5

SCODELLINO INFERIORE

826256

$0,86 Unit Price incl. VAT

6

VALVOLA SCARICO

828321

$20,54 Unit Price incl. VAT

7

VALVOLA ASPIRAZIONE

828322

$29,24 Unit Price incl. VAT

8

SCODELLINO SUPERIORE

828396

$118,11 Unit Price incl. VAT

9

Exhaust pipe stud bolt M8x3x46

827018

Not Available

10

PRIGIONIERO M6X27,5

878991

$1,97 Unit Price incl. VAT

11

FASCETTA STRINGITUBO (D.28,6 S.0,6 L.7)

CM001915

$1,03 Unit Price incl. VAT

12

TAPPO FILETTATO M6X10

842360

$0,75 Unit Price incl. VAT

13

CAPPUCCIO SPURGO

063435

$0,34 Unit Price incl. VAT

14

VITE DI SPURGO

430045

$2,40 Unit Price incl. VAT

15

Temperature gauge

640485

Not Available

18

TUBO RACCORDO TESTA-TERMOSTATO

840826

$10,00 Unit Price incl. VAT

19

MOLLETTA ELASTICA

843603

$5,38 Unit Price incl. VAT

20

Water thermostat

844566

Not Available

21

GUARNIZIONE TESTA/CILINDRO

847406

$25,10 Unit Price incl. VAT

22

screw M6x90

830278

$2,95 Unit Price incl. VAT

22

VITE FLANGIATA A TESTA ESAGONALE

B016776

$0,67 Unit Price incl. VAT

23

DADO ESAGONALE ALTO

832783

$2,83 Unit Price incl. VAT

24

RONDELLA PIANA

178790

$0,51 Unit Price incl. VAT

25

GRANO DI RIF.TO PER CARTER

825597

$0,94 Unit Price incl. VAT

26

STAFFA SOST.TERMOSTATO

840062

$2,83 Unit Price incl. VAT

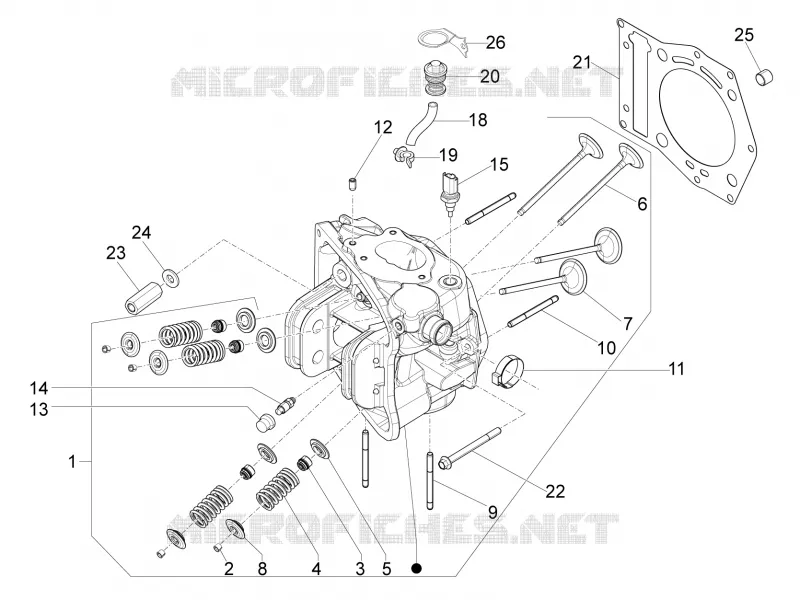

Find the detailed Head unit - Valve GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
