1
Engine displacement
50
2
Model
NRG
3
Year
0
4
Trim
NRG Power DT
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Sipply system
by
Footboard - spoiler
Front shield
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
17
18
19
20
21
21
21
22
23
1
Spring plate
CM017410
$0,34 Unit Price incl. VAT
2
Right shield lateral grille
959326000G
$5,74 Unit Price incl. VAT
3
Left shield lateral cover
959327000G
$5,74 Unit Price incl. VAT
4
Counter shield
959321000G
$42,72 Unit Price incl. VAT
5
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
8
"Hi-Per2" name plate
62294000B1
Not Available
8
"Hi-Per2" name plate
62294000B8
Not Available
8
"Hi-Per2" name plate
62294000B5
$1,72 Unit Price incl. VAT
9
Spring plate
CM017410
$0,34 Unit Price incl. VAT
10
Spring plate M6
254485
$0,34 Unit Price incl. VAT
11
Screw M6x16
272836
$3,70 Unit Price incl. VAT
12
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
13
shield
95932300A3
Not Available
13
Front shield
95932300R7
Not Available
13
Front shield
9593230090
Not Available
13
shield
95932300BM
Not Available
13
shield
95932300EE
Not Available
14
Self tapping screw M4,2x25
259372
$2,99 Unit Price incl. VAT
15
Water cooler grille
959320000G
Not Available
16
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
17
Spring plate
CM017410
$0,34 Unit Price incl. VAT
18
cover
959441000G
$18,24 Unit Price incl. VAT
19
Air deflector
959464
$2,79 Unit Price incl. VAT
20
Hook for bag
253469
$28,35 Unit Price incl. VAT
21
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
22
Spoiler plate
62293800D1
Not Available
23
Spoiler plate
62293900D1
Not Available

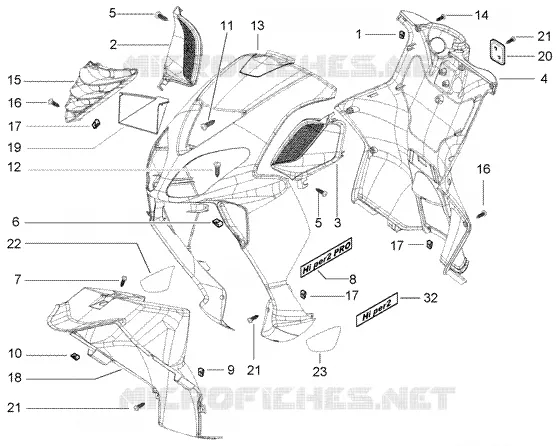

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
