Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil for Beverly Cruiser E3 from 2007

Flywheel magneto cover - Oil filter

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

1

Voltage regulator

58086R

Not Available

2

Screw w/ flange

828863

$0,09 Unit Price incl. VAT

3

Bracket

620107

$5,53 Unit Price incl. VAT

4

Metric screw TBC

259348

$2,99 Unit Price incl. VAT

5

Washer 4,2x8x1,1

012531

$0,08 Unit Price incl. VAT

6

Nut M4

020104

$1,26 Unit Price incl. VAT

7

Hex socket screw

031033

$2,95 Unit Price incl. VAT

8

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

9

Coil cpl.

639187

$80,49 Unit Price incl. VAT

10

Spark.plug protection clamp

641643

$4,82 Unit Price incl. VAT

11

Insulating cap

071671

$1,29 Unit Price incl. VAT

12

H.V. cable

080341

$5,89 Unit Price incl. VAT

13

Screened cap

969348

$8,17 Unit Price incl. VAT

14

Metallic clamp

640571

Not Available

15

Hex screw M6x18

031089

$2,99 Unit Price incl. VAT

16

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

17

Nut M6

020106

$0,08 Unit Price incl. VAT

18

screw

031087

$2,95 Unit Price incl. VAT

18

Screw m6x12

031086

$0,08 Unit Price incl. VAT

19

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

20

Hose clamp

271451

$3,65 Unit Price incl. VAT

21

Coil holder

CM077303

$14,30 Unit Price incl. VAT

22

End cap

015014

$4,82 Unit Price incl. VAT

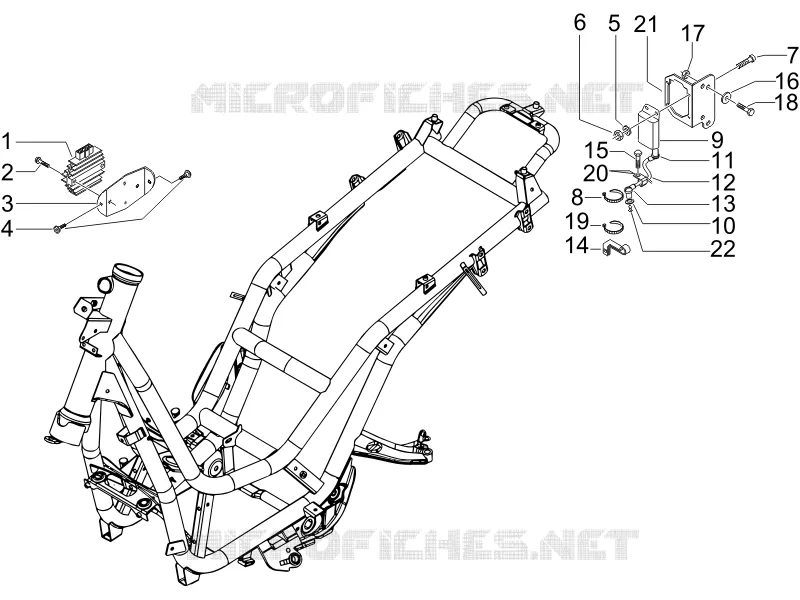

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
