Handlebars - Master cil. for GILERA PIAGGIO VESPA Beverly from 2005

Handlebars - Master cil.

1

MANUBRIO CON P.I.

599348

$130,65 Unit Price incl. VAT

2

Throtle sleeve

598616

$167,40 Unit Price incl. VAT

3

MANOPOLA SINISTRA

271452

$13,37 Unit Price incl. VAT

4

MANOPOLA DESTRA

271453

$13,37 Unit Price incl. VAT

5

TRASMISSIONE COMANDO APERTURA GAS

598617

$33,75 Unit Price incl. VAT

6

Right brake hydraulic pump

CM077403

Not Available

6

Brakes pump

CM072603

Not Available

7

LEVA FRENO

646829

$27,00 Unit Price incl. VAT

8

Brake pump plug

497032

$14,89 Unit Price incl. VAT

9

Pin

497141

$21,37 Unit Price incl. VAT

10

CAVALLOTTO RIF.110437262

497343

$15,31 Unit Price incl. VAT

11

POMPA IDRAULICA FRENO SX

56183R

$212,55 Unit Price incl. VAT

11

Pin

497141

$21,37 Unit Price incl. VAT

12

BRAKE- MASTER CYLINDER L.H. BV-500

CM072604

Not Available

12

LEVA FRENO

646829

$27,00 Unit Price incl. VAT

12

LEVA FRENO

600475

$11,82 Unit Price incl. VAT

13

Brake pump plug

497032

$14,89 Unit Price incl. VAT

14

Pin

497141

$21,37 Unit Price incl. VAT

15

PONTICELLO POMPA FRENO COMPL.

600478

$11,06 Unit Price incl. VAT

15

CAVALLOTTO RIF.110437262

497343

$15,31 Unit Price incl. VAT

17

Anti vib.weight trailing

582034

$14,89 Unit Price incl. VAT

18

screw M6x55

271434

Not Available

19

VITE A TESTA CILINDRICA ESAGONO INCASS.

655554

$3,70 Unit Price incl. VAT

19

screw

223605

Not Available

20

RONDELLA ELASTICA PIANA DENT.INTERNA

012543

$0,08 Unit Price incl. VAT

21

RONDELLA PIANA

178790

$0,51 Unit Price incl. VAT

22

ECROU

015330

$0,25 Unit Price incl. VAT

23

PULSANTE

583575

$3,26 Unit Price incl. VAT

24

RONDELLA MANUBRIO

601170

$6,60 Unit Price incl. VAT

25

Transmission

598618

Not Available

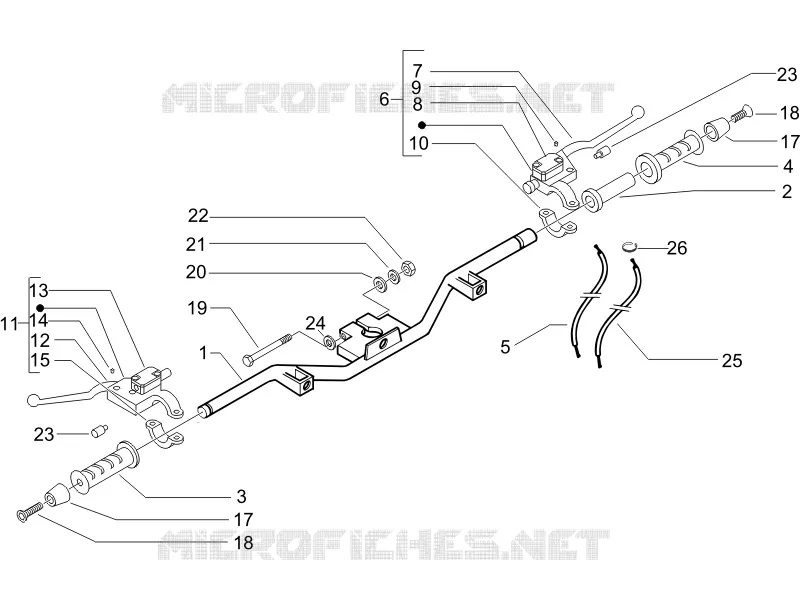

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
