1
Engine displacement
500
2
Model
BEVERLY
3
Year
2005
4
Trim
Beverly
5
Parts Catalog

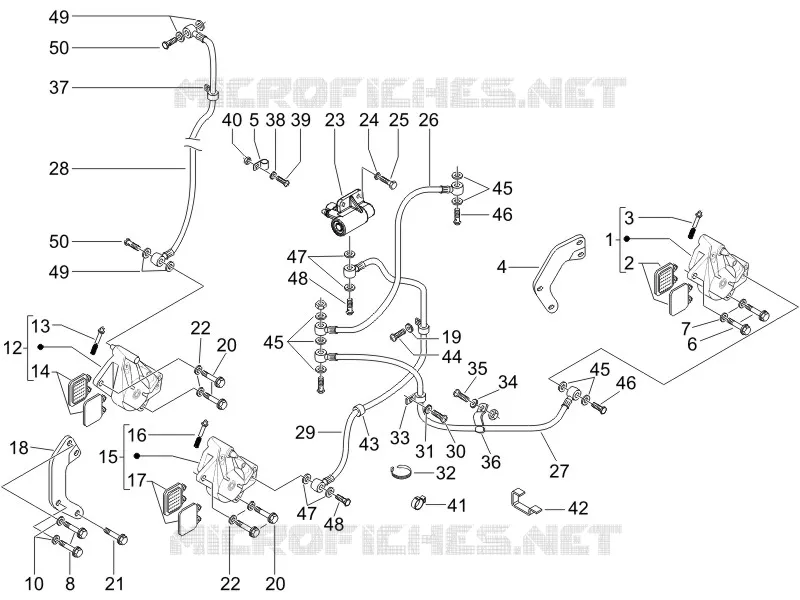

Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Rear wheel
by
Transmissions
Brakes pipes - Calipers
1
2
3
4
5
6
7
8
10
12
13
14
15
16
17
18
19
20
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
45
46
46
47
47
48
48
49
49
50
50
1
Brake caliper
56471R
$118,08 Unit Price incl. VAT
1
Brake caliper
56167R
Not Available
2
Brake pads kit (Brembo)
647077
$43,20 Unit Price incl. VAT
3
Clip-pin-spring kit
600207
Not Available
4
Caliper support bracket
598060
Not Available
4
Caliper support bracket
649418
$22,29 Unit Price incl. VAT
5
Hose clamp
598795
$2,27 Unit Price incl. VAT
6
screw
598837
$3,65 Unit Price incl. VAT
7
Spring washer
709047
$0,08 Unit Price incl. VAT
8
screw
030076
$3,65 Unit Price incl. VAT
10
Brake washer
598833
$3,65 Unit Price incl. VAT
12
Brake caliper
56472R
$249,34 Unit Price incl. VAT
12
Brake caliper (Brembo)
CM067902
Not Available
13
Clip-pin-spring kit
600207
Not Available
14
Brake pads kit
647076
$23,63 Unit Price incl. VAT
15
Brake caliper (Brembo)
CM067901
Not Available
15
Brake caliper
56473R
Not Available
16
Clip-pin-spring kit
600207
Not Available
17
Brake pads kit
647076
$23,63 Unit Price incl. VAT
18
Caliper support bracket
598610
$8,65 Unit Price incl. VAT
18
Caliper support bracket
649851
$14,30 Unit Price incl. VAT
19
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
20
screw
598837
$3,65 Unit Price incl. VAT
21
Screw w/ flange
598839
$0,09 Unit Price incl. VAT
22
Spring washer
709047
$0,08 Unit Price incl. VAT
23
Valve
56122R
$171,53 Unit Price incl. VAT
24
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
25
Hex socket screw M6x20
709674
$0,17 Unit Price incl. VAT
26
Brake pipe (master cil. L.H.-valve)
597639
$21,26 Unit Price incl. VAT
27
Rear brake pipe
599282
Not Available
28
Brake pipe (master cil. R.H.-caliper R.H.)
598611
$29,77 Unit Price incl. VAT
29
Brake pipe (valve-caliper L.H.)
598612
Not Available
30
screw M6x14
296170
$2,95 Unit Price incl. VAT
31
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
32
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
33
Hose clamp
482290
$0,50 Unit Price incl. VAT
34
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
35
screw M6x14
296170
$2,95 Unit Price incl. VAT
36
Hose clamp
482290
$0,50 Unit Price incl. VAT
37
Hose clamp
598795
$2,27 Unit Price incl. VAT
38
Plain washer 12x5.2x1
006078
$0,08 Unit Price incl. VAT
39
Self-tapping screw
018623
Not Available
40
Self locking nut
219727
$3,65 Unit Price incl. VAT
41
Hose clamp
217280
Not Available
42
Hose clamp
217280
Not Available
43
Elastic spring
231590
$0,25 Unit Price incl. VAT
44
Oil pipe screw *
597633
$3,21 Unit Price incl. VAT
45
Gasket
127927
$0,25 Unit Price incl. VAT
46
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
47
Gasket
127927
$0,25 Unit Price incl. VAT
48
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
49
Gasket
127927
$0,25 Unit Price incl. VAT
50
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
