Engine displacement
500
2
Model
BEVERLY
3
Year
2005
4
Trim
Beverly
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Crankshaft
by
Head unit - Valve
Cylinder-piston-wrist pin unit
1
3
4
5
6
7
8
9
10
11
12
13
1
Piston assy cat4
8328120004
Not Available
1
Piston assy
8328120001
Not Available
1
Piston assy cat2
8328120002
Not Available
1
Piston assy cat3
8328120003
Not Available
3
SEGMENTO RASCHIAOL.(D.
827706
$39,27 Unit Price incl. VAT
4
Oil scraper ring d.92x2,5
827707
Not Available
5
SPINOTTO (D.22)
827820
$26,21 Unit Price incl. VAT
6
ANELLO RITEGNO SPINOTTO
828116
$0,29 Unit Price incl. VAT
7
SEGMENTO DI COMPRESSIONE
832770
$36,45 Unit Price incl. VAT
8
Cylinder with piston
832811
Not Available
9
GUARNIZ.CILIND/CARTER 0,6
830276
$4,32 Unit Price incl. VAT
9
GUARNIZ.CILIND/CARTER 0,4
830277
$3,49 Unit Price incl. VAT
9
GUARNIZ.CILIND/CARTER 0,8
830275
$4,46 Unit Price incl. VAT
10
DADO ES.FLG.M6 DIN-6923
288245
$0,16 Unit Price incl. VAT
11
Chain tensioner bracket
289919
Not Available
12
GUARNIZIONE CIL./SUPP.TENDICATENA
847928
$0,42 Unit Price incl. VAT
12
Gasket
834254
$4,82 Unit Price incl. VAT
13
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT

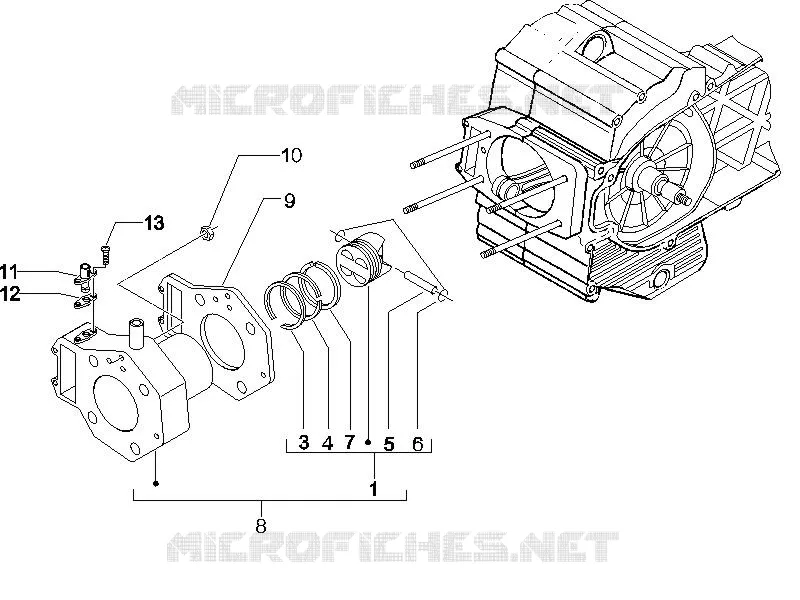

Find the detailed Cylinder-piston-wrist pin unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
