Stater - Electric starter for GILERA PIAGGIO VESPA Beverly from 2005

Stater - Electric starter

1

Starter motor

825130

Not Available

2

CORONA AVV.ELETTRICO CON P.I.

82737R

$81,00 Unit Price incl. VAT

5

LAMIERINO CONTEN.CORON

828109

$4,82 Unit Price incl. VAT

7

Torque limiter

832117

Not Available

8

Ground cable

581424

Not Available

11

CAVO MOTORINO AVVIAMENTO

584304

$14,18 Unit Price incl. VAT

12

screw M6x22

828152

$0,15 Unit Price incl. VAT

13

TBCIC Screw M5x12

015935

$4,82 Unit Price incl. VAT

14

VITE TESTA ESAGON.FLANG. M6X10

969296

$0,16 Unit Price incl. VAT

15

RONDELLA ELASTICA CURVATA

006966

$0,08 Unit Price incl. VAT

17

RONDELLA ELASTICA 8,5x5,1x1,5

016405

$0,08 Unit Price incl. VAT

18

VITE

581596

$0,07 Unit Price incl. VAT

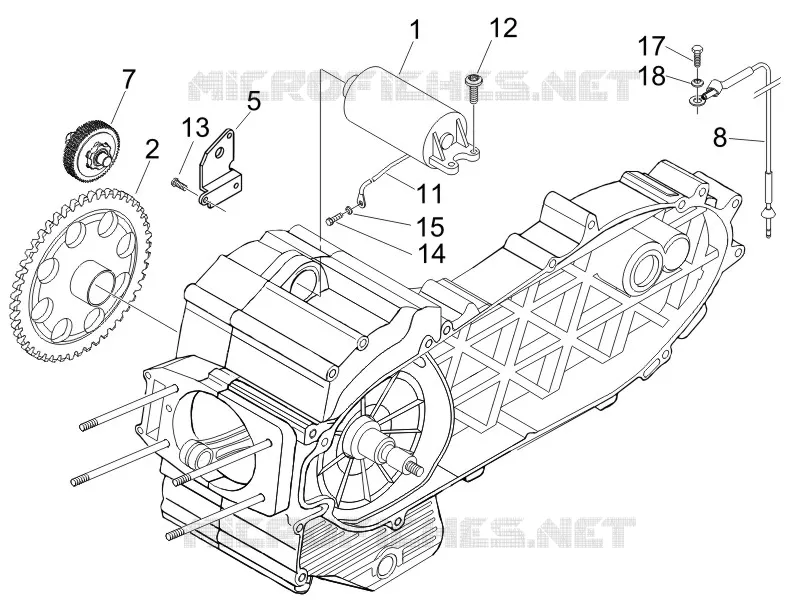

Find the detailed Stater - Electric starter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
