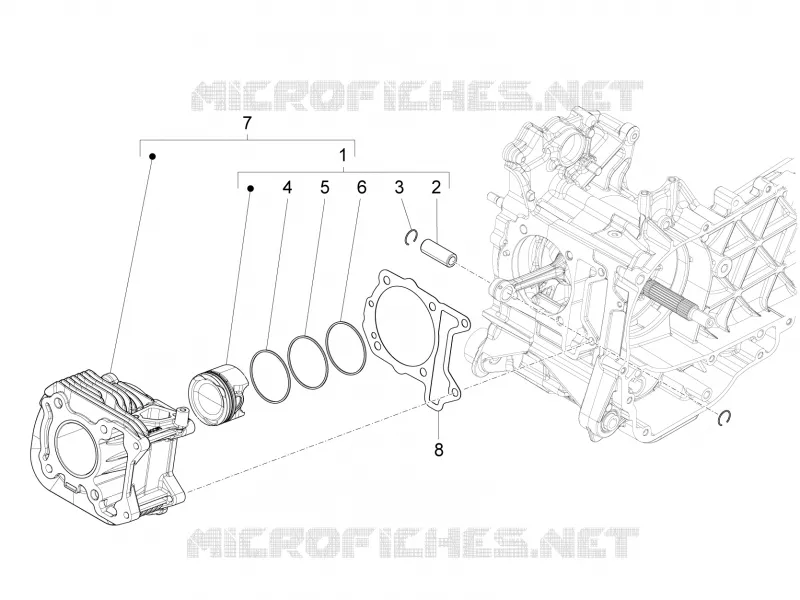

Cylinder-piston-wrist pin unit
1
1
1
1
2
3
4
5
6
7
7
8
8
8
1
C cat. complete piston
B0180110003
$66,39 Unit Price incl. VAT
1
D cat. complete piston
B0180110004
$76,49 Unit Price incl. VAT
1
A cat. complete piston
B0180110001
$102,02 Unit Price incl. VAT
1
B cat. complete piston
B0180110002
$68,61 Unit Price incl. VAT
2
Axe
1A014567
$4,79 Unit Price incl. VAT
3
Circlip
B015602
$0,25 Unit Price incl. VAT
4
Compression ring 1° cava
B017548
$11,52 Unit Price incl. VAT
5
Compression ring 2° cava
B017549
$12,02 Unit Price incl. VAT
6
Compression ring 3° cava
B017550
$18,58 Unit Price incl. VAT
7
Groupe cylindre - piston - axe de piston
1A0017275
$172,75 Unit Price incl. VAT
7
Cylinder - piston - pin - parts- rings assembly
1A000770
$267,83 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,8 mm
B015443
Not Available
8
Crankcase/cylinder gasket 0,6 mm
B015442
$8,65 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,4 mm
B015441
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
