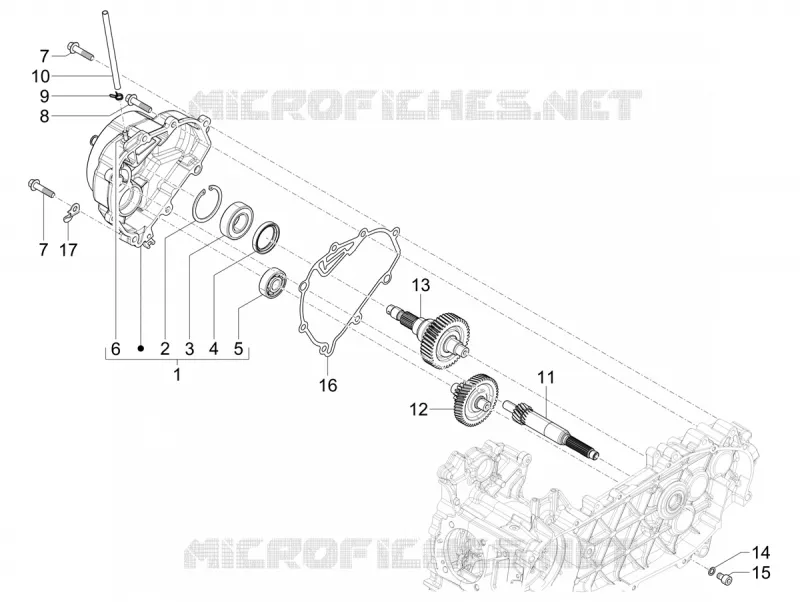

Reduction unit
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
1
Reducer cover with i.p.
B0160435
$137,02 Unit Price incl. VAT
2
Circlip
829206
$0,67 Unit Price incl. VAT
3
Bearing 30.55.13
1A005376R
$14,12 Unit Price incl. VAT
4
Gasket ring 38x50x7
B015440
$7,15 Unit Price incl. VAT
5
Radial bearing 15x42x13
83026R
$4,46 Unit Price incl. VAT
6
Raccord
B016412
$12,86 Unit Price incl. VAT
7
Screw m8x50
B016773
$0,67 Unit Price incl. VAT
8
Screw w/ flange M8x35
1A000769
$2,35 Unit Price incl. VAT
9
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
10
Reduction unit breather pipe assembly
B018670
$10,00 Unit Price incl. VAT
11
Driven pulley shaft z 15
B017168
$27,91 Unit Price incl. VAT
12
Lay-shaft assy with i.p.
1A0004104
Not Available
13
Axe de roue arrière avec pièces internes
1A001090
$65,74 Unit Price incl. VAT
14
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
15
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
16
Reduction unit cover gasket
B016456
$3,11 Unit Price incl. VAT
17
Hose clamp
1A000482
$4,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
