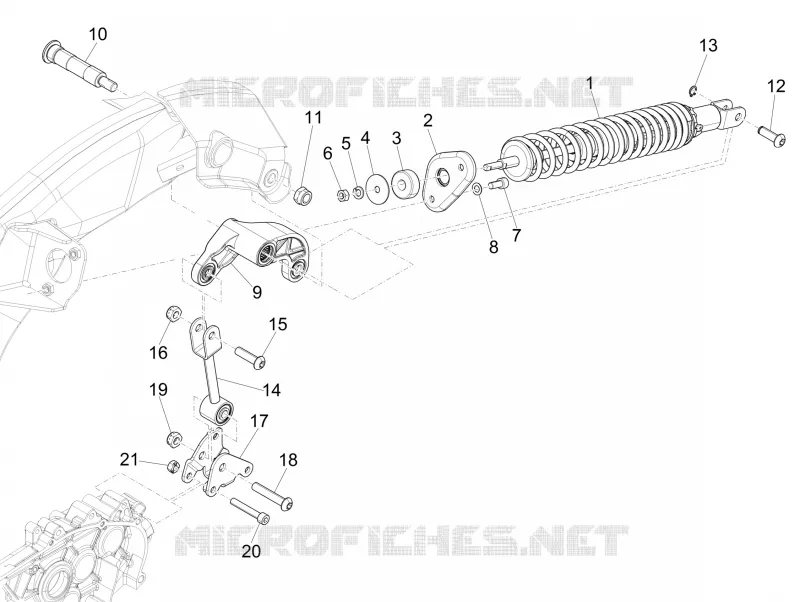

Rear suspension - Shock absorber/s
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
1
Complete rear shock absorber
668599
$326,59 Unit Price incl. VAT
2
Shock absorber connection bracket
668934
$8,07 Unit Price incl. VAT
3
Upper buffer
178150
$0,92 Unit Price incl. VAT
4
Flat washer
267038
$0,67 Unit Price incl. VAT
5
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
6
Nut M8
021108
$0,25 Unit Price incl. VAT
7
Vis M8x18
1C006162
$1,10 Unit Price incl. VAT
8
Spring washer
709047
$0,08 Unit Price incl. VAT
9
Gear cpl.
668614
$219,45 Unit Price incl. VAT
10
Pin
668662
$59,10 Unit Price incl. VAT
11
Self locking nut
267555
$0,42 Unit Price incl. VAT
12
Torx Screw
1C000225
$11,01 Unit Price incl. VAT
13
Ring
006409
$0,08 Unit Price incl. VAT
14
Swinging unit coupling complete strut
668656
$73,72 Unit Price incl. VAT
15
Torx Screw
669304
$1,68 Unit Price incl. VAT
16
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
17
Left strut fixing bracket
1C000259
$21,52 Unit Price incl. VAT
18
Torx Screw
669305
$2,35 Unit Price incl. VAT
19
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
20
Hex socket screw M8x55
872997
$0,84 Unit Price incl. VAT
21
Self locking nut M8
195483
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
