1
Engine displacement
300
2
Model
GTV
3
Year
2023
4
Trim
Vespa GTV 300 HPE E5 ABS RST
5
Parts Catalog
Remote control switches - Battery - Horn
6

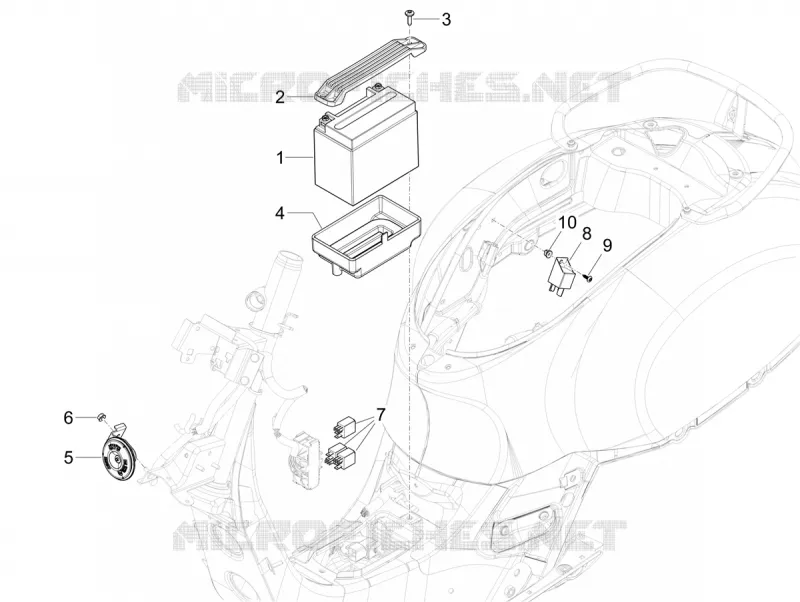

Parts Diagram
Parts Catalog
TAIL LIGHTS - INDICATORS
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Remote control switches - Battery - Horn
1
1
2
3
4
5
6
7
8
9
10
1
Battery PTX12-BS 12V-10Ah (Piaggio)
1R000318
$121,77 Unit Price incl. VAT
1
Battery (Yuasa) 12V-10Ah
583158
$278,17 Unit Price incl. VAT
2
Clamp
6218305
$25,62 Unit Price incl. VAT
3
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
4
Battery float chamber
1B003942
$22,29 Unit Price incl. VAT
5
Klaxon 12 V cc
CM071822
$24,03 Unit Price incl. VAT
6
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
7
Microrelay with resistance 12V 30A/10A
1D001636
$6,14 Unit Price incl. VAT
8
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
9
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
10
Expansion plug
157716
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
