Cooling system FOR Vespa GTV 300 E5 140° Anniversario FROM 2024

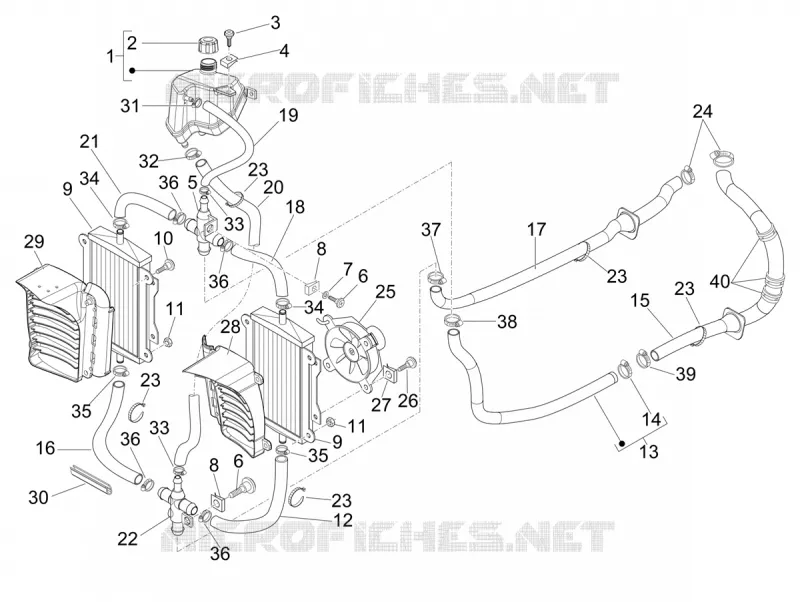

Cooling system

1

Réservoir

657111

Not Available

2

Expansion tank plug

623673

$15,97 Unit Price incl. VAT

3

Metric screw M6x22

CM179201

$0,34 Unit Price incl. VAT

4

Spring plate M6

254485

$0,34 Unit Price incl. VAT

5

Joint

577195

$8,16 Unit Price incl. VAT

6

Metric screw M6x22

CM179201

$0,34 Unit Price incl. VAT

7

Spring washer

709047

$0,08 Unit Price incl. VAT

8

Spring plate M6

254485

$0,34 Unit Price incl. VAT

9

Water cooler

577183

$50,73 Unit Price incl. VAT

10

Self tapping screw 4,2x16

CM178606

$0,16 Unit Price incl. VAT

11

Self locking nut M6

241936

$0,08 Unit Price incl. VAT

12

Lower joint-left radiator connection pipe

57313R

$26,74 Unit Price incl. VAT

13

Tuyau de connexion de raccord supérieur

1B010592

$27,87 Unit Price incl. VAT

14

Collier à ressort 28/12

CM226915

$2,35 Unit Price incl. VAT

15

Head coupling tube

653501

$31,97 Unit Price incl. VAT

16

Lower joint-right radiator connection pipe

577201

$26,74 Unit Price incl. VAT

17

Lower joint pipe

656437

$20,60 Unit Price incl. VAT

18

Hose radiator LH-upper joint

1B003454

$8,91 Unit Price incl. VAT

19

Hose coolant tank-upper joint

1B003456

$5,38 Unit Price incl. VAT

20

pipe

57314R

$7,23 Unit Price incl. VAT

21

Hose radiator RH-upper side

1B003455

$5,38 Unit Price incl. VAT

22

Joint for water pipes

656449

$17,83 Unit Price incl. VAT

23

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

24

Hose clamp

675874

$3,65 Unit Price incl. VAT

25

Fan engine

584669

$76,39 Unit Price incl. VAT

26

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

27

Spring plate M6

254485

$0,34 Unit Price incl. VAT

28

Left air duct

577187

$15,22 Unit Price incl. VAT

29

Right air duct

622839

$15,22 Unit Price incl. VAT

30

Guard

CM077703

$4,32 Unit Price incl. VAT

31

Hose clamp

CM001902

Not Available

32

Hose clamp

CM001904

$0,75 Unit Price incl. VAT

33

Collier à ressort 18/12

CM226913

$1,48 Unit Price incl. VAT

34

Hose clamp

CM001905

$1,38 Unit Price incl. VAT

35

Collier à ressort

CM226916

$3,08 Unit Price incl. VAT

36

Hose clamp

CM226910

$2,86 Unit Price incl. VAT

37

Collier à ressort 26/12

CM226914

$2,15 Unit Price incl. VAT

38

Collier à ressort

CM226917

$3,62 Unit Price incl. VAT

39

Collier à ressort 28/12

CM226915

$2,35 Unit Price incl. VAT

40

Pipes/cables retainer spring

CM006903

$1,43 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
