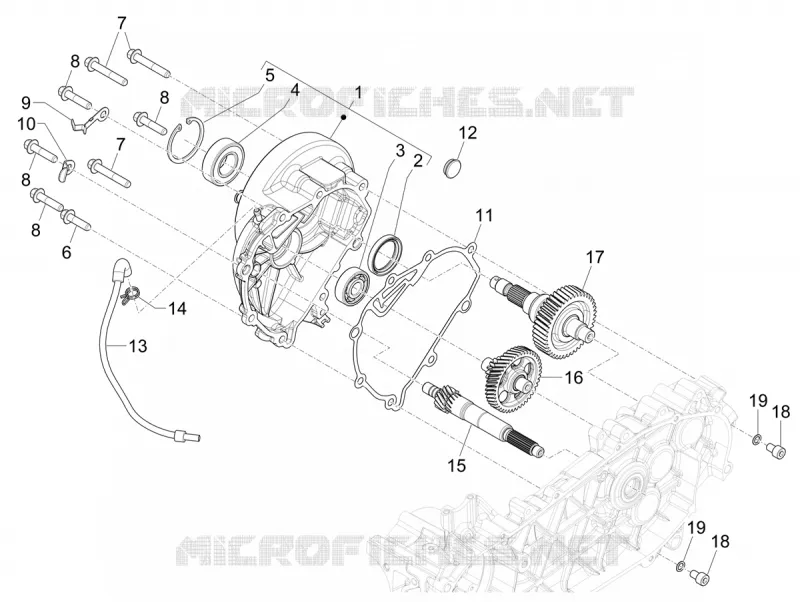

Reduction unit
1
2
3
4
5
6
7
7
8
8
8
8
9
10
11
12
13
14
15
16
17
18
18
19
19
1
Reducer cover with i.p.
1A0058715
$96,83 Unit Price incl. VAT
2
Gasket ring 35x47x7
B015623
$5,90 Unit Price incl. VAT
3
Radial ball bearing 15x42x13
485912
Not Available
4
Roulement radial 25x52x15
4789845
$19,85 Unit Price incl. VAT
5
Snap ring
006652
$0,76 Unit Price incl. VAT
6
Screw w/ flange M8x35
B016772
$0,50 Unit Price incl. VAT
7
Screw m8x50
B016773
$0,67 Unit Price incl. VAT
8
Screw w/ flange M8x35
B016772
$0,50 Unit Price incl. VAT
9
Plate
1A001437
$6,30 Unit Price incl. VAT
10
Bracket
1A004858
$1,84 Unit Price incl. VAT
11
Reduction unit cover gasket
B016456
$3,11 Unit Price incl. VAT
12
Dust gaiter cover
1A000004
$1,09 Unit Price incl. VAT
13
Reduction unit breather pipe assembly
B018670
$10,00 Unit Price incl. VAT
14
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
15
Driven pulley shaft Z=14
1A005707
Not Available
16
Lay-shaft assy with i.p.
1A0068294
$40,20 Unit Price incl. VAT
17
Axe de roue arrière avec pièces internes
1A0016694
$43,51 Unit Price incl. VAT
18
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
19
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
