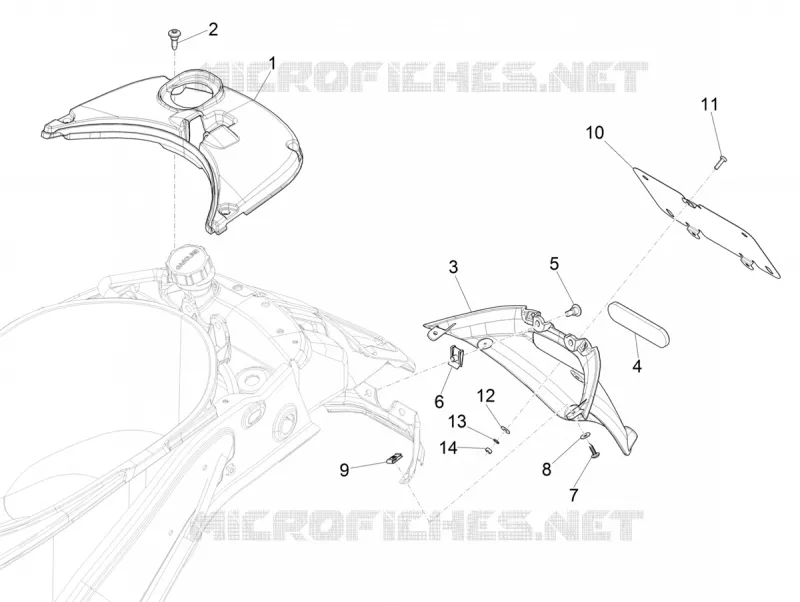

Rear cover - Splash guard
1
2
3
4
5
6
7
7
8
8
9
9
10
11
12
13
14
1
Tank cover
1B000320
$15,22 Unit Price incl. VAT
2
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
3
Rear protection
676206000C
$10,63 Unit Price incl. VAT
4
Rear retroreflector
58233R5
$2,60 Unit Price incl. VAT
5
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Self tapping screw 4,2x16
015911
$2,25 Unit Price incl. VAT
8
Washer 4,5x12x1
016670
$0,09 Unit Price incl. VAT
9
Plate
CM017408
$0,25 Unit Price incl. VAT
10
Number plate holder (Plastica 121x141)
638833
$1,65 Unit Price incl. VAT
11
Hex socket screw
581957
$0,16 Unit Price incl. VAT
12
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
13
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
14
Nut M4
020104
$1,26 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
